8-Port FTTH Fiber Distribution Box - Wall Mount, 12 Splice Capacity, Plastic Enclosure
Couldn't load pickup availability

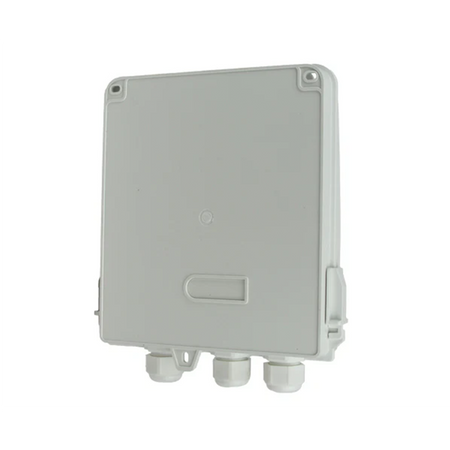

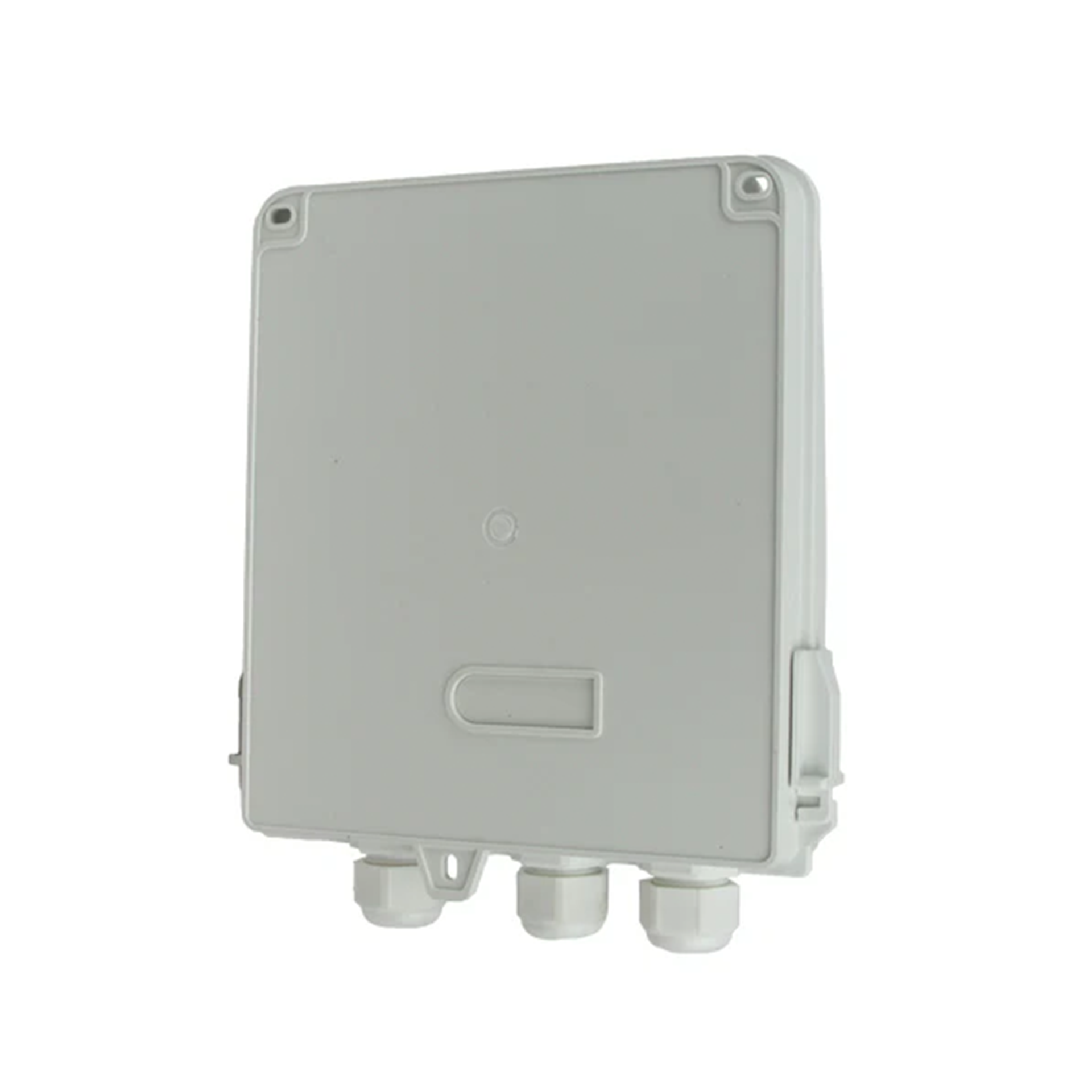

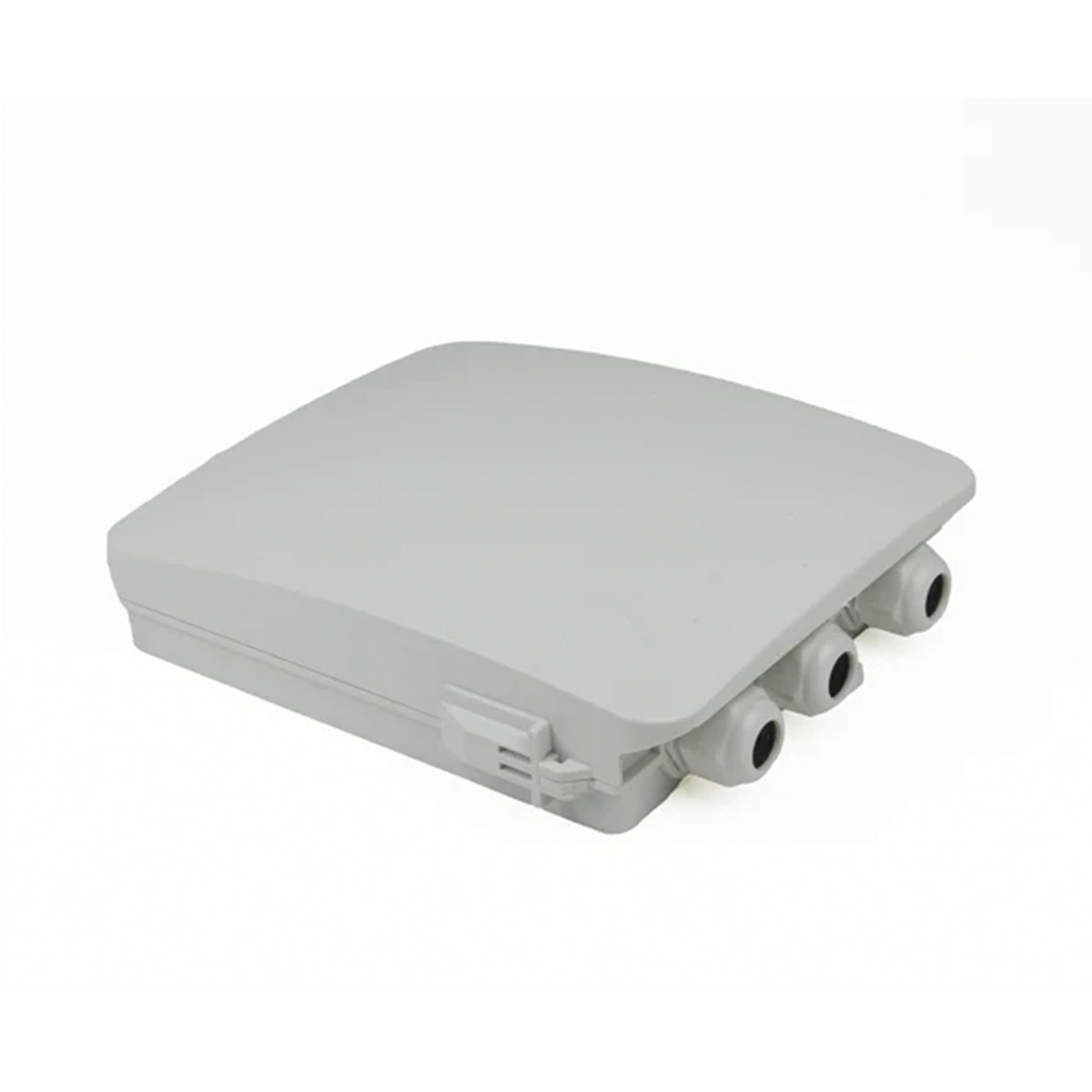

8-Port FTTH Fiber Distribution Box - Wall Mount
Compact wall-mounted fiber distribution box engineered for fiber-to-the-home (FTTH) and telecommunication network installations. This lightweight plastic enclosure provides secure fiber cable termination, splice protection, and adapter mounting in a weather-resistant IP65-rated housing. Designed for quick deployment in residential, commercial, and outdoor environments where space is limited and protection from the elements is essential.
Key Features
- 8-Port Adapter Capacity - Accommodates 8 SC simplex or 8 LC duplex adapters (sold separately)

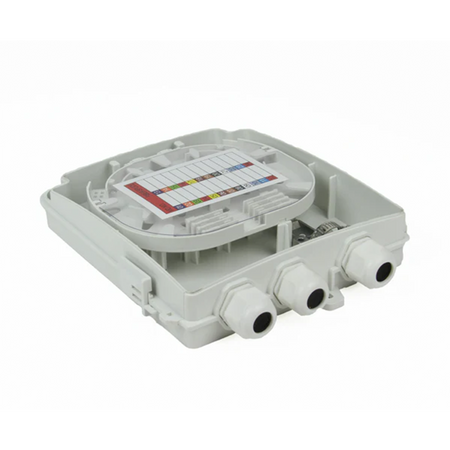

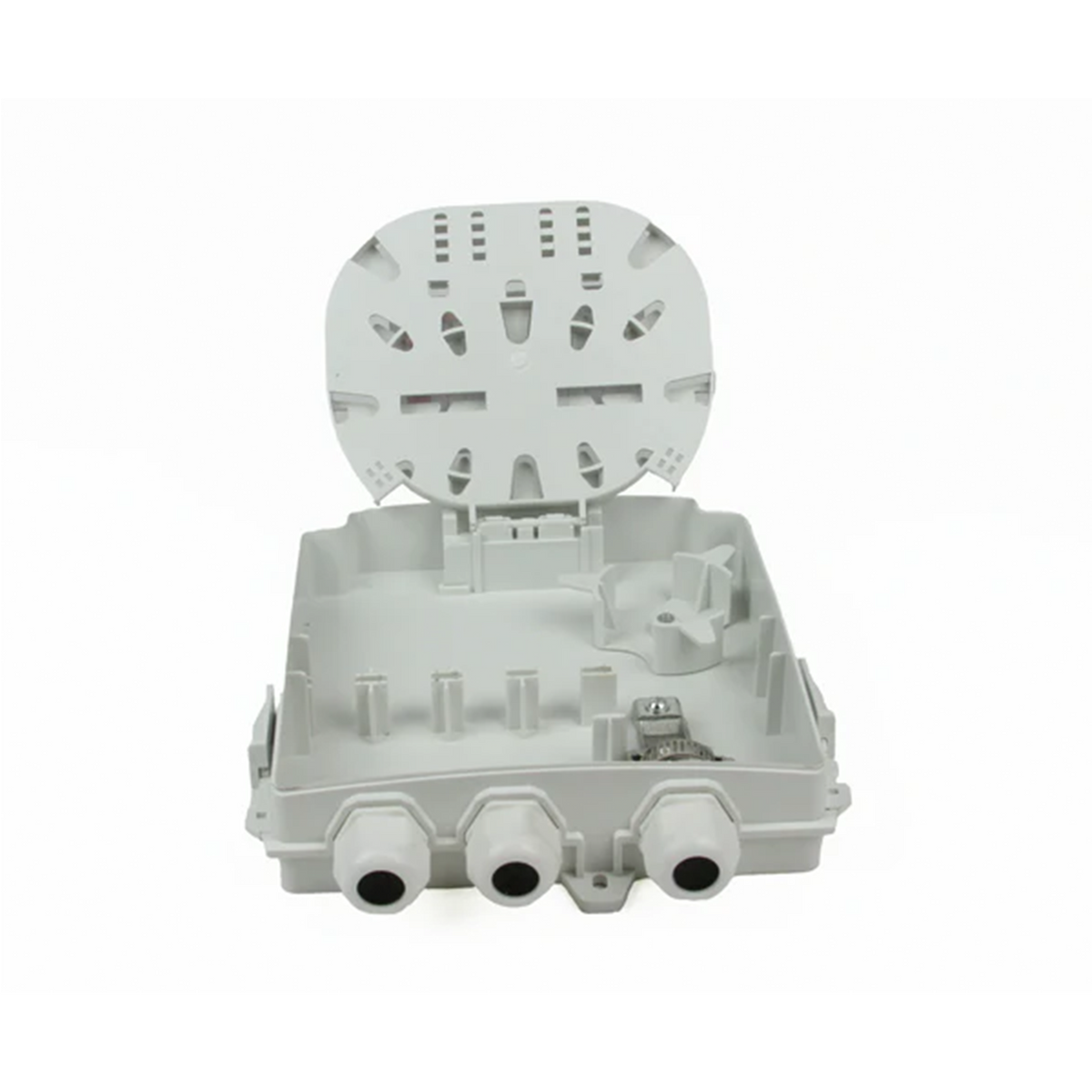

- 12 Splice Capacity - Internal splice tray protects up to 12 fiber splices
- IP65 Weather Rating - Dust-tight and water-resistant for outdoor installations
- Wall Mount Design - Compact surface-mount installation for flexible placement
- Sliding Access - Easy-open sliding shackles for quick maintenance access

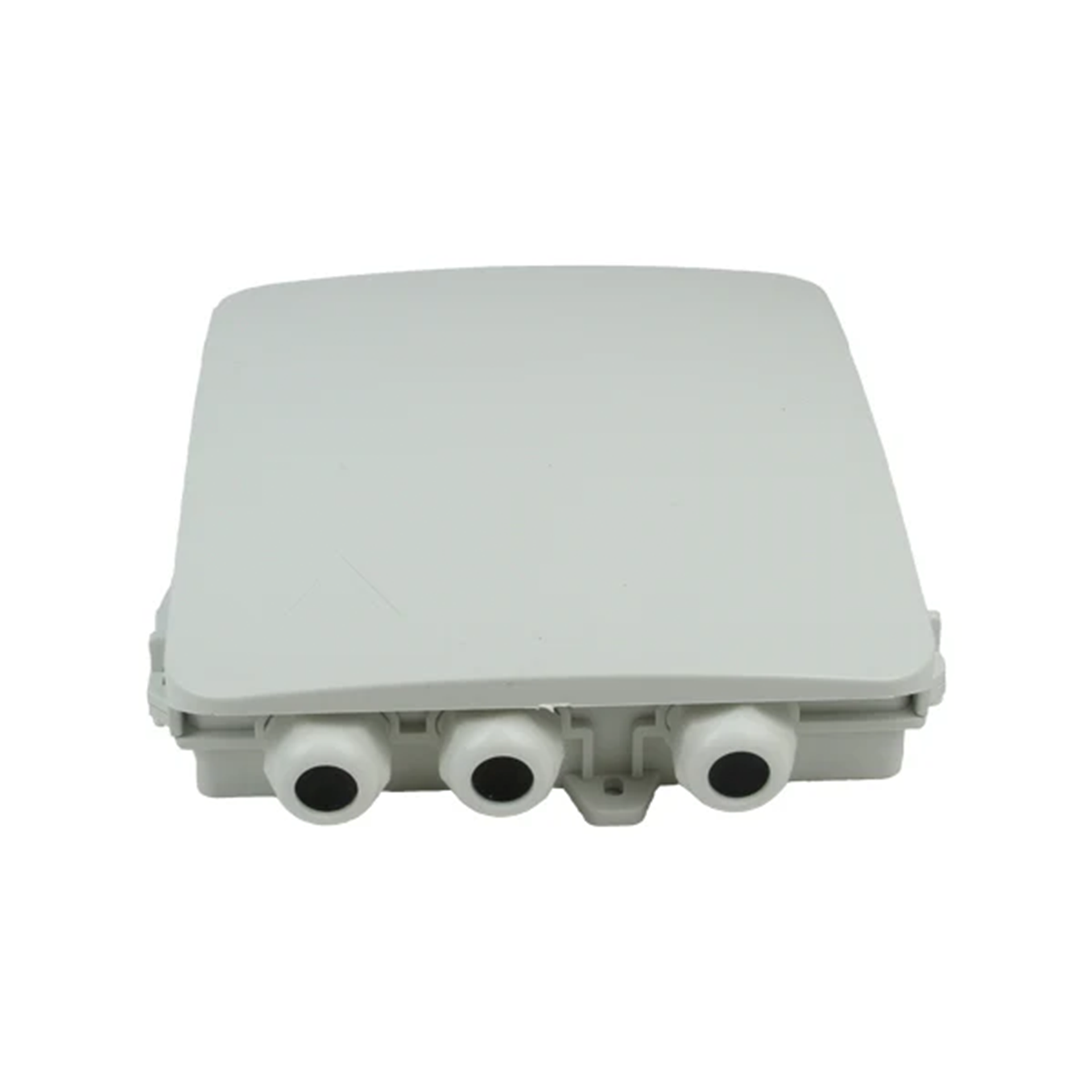

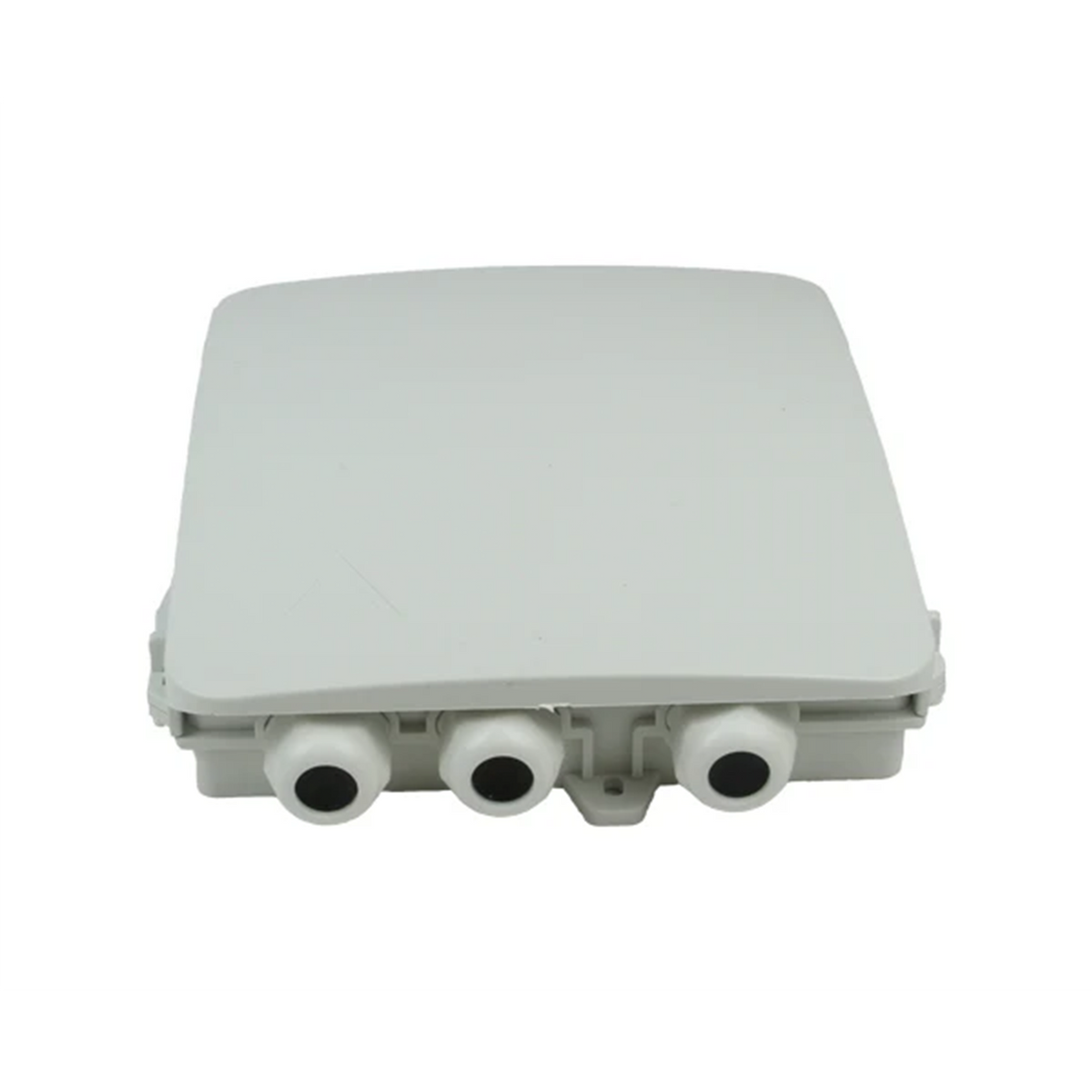

- Dual Cable Entry - Compatible with outdoor or indoor fiber cables
- Lightweight Construction - Durable plastic enclosure for easy installation
- Compact Footprint - Space-efficient design (199mm x 160mm x 46mm)
- SC Simplex Footprint - Standard adapter spacing for flexibility
- Weather-Resistant - Suitable for outdoor or indoor deployment
Ideal Applications
Perfect for fiber-to-the-X (FTTx) deployments and telecom applications:
- FTTH (Fiber-to-the-Home) - Residential fiber termination points
- FTTB (Fiber-to-the-Building) - Multi-dwelling unit (MDU) distribution
- FTTP (Fiber-to-the-Premises) - Business fiber demarcation
- FTTC (Fiber-to-the-Curb) - Neighborhood distribution points
- Telecommunication Networks - Service provider access points
- CATV Networks - Cable television fiber distribution
- Local Area Networks - Building entry point terminations
- Campus Networks - Outdoor fiber connection points
Physical Specifications
- Dimensions: 199mm (W) x 160mm (H) x 46mm (D)
- Imperial Dimensions: 7.8" (W) x 6.3" (H) x 1.8" (D)
- Weight: Lightweight plastic construction
- Material: High-impact plastic
- Color: Off-White
- Mounting Type: Wall mount (surface mount)
Capacity Specifications
-
Adapter Capacity: 8 ports with SC simplex footprint
-
Splice Capacity: Up to 12 fusion or mechanical splices
-
Adapter Panel Slots: 4 panels (2 ports per panel)
-
Compatible Adapters:
- 8x SC Simplex (sold separately)
- 8x LC Duplex with SC simplex footprint (sold separately)
Environmental Specifications
- IP Rating: IP65 (dust-tight, water-resistant)
- Installation: Indoor or outdoor
- Cable Compatibility: Outdoor-rated or indoor soft cables
Deployment Benefits
✓ Fast Installation - Wall-mount design installs in minutes
✓ Compact Size - Fits in tight spaces and utility boxes
✓ Weather Protection - IP65 rating protects against rain, dust, and debris
✓ Flexible Configuration - Choose SC or LC adapters based on needs
✓ Easy Access - Sliding mechanism enables quick maintenance
✓ Cost-Effective - Affordable solution for FTTH deployments
✓ Dual Environment - Use indoors or outdoors as needed
Industry Standards
- TIA/EIA Standards: Structured cabling compliance
- IEC Standards: International fiber optic standards
- Telcordia Standards: Telecommunications requirements
- IP Rating: IEC 60529 ingress protection standard
Safety & Environmental
- RoHS Compliant: Restriction of hazardous substances
- Fire Safety: Suitable materials for building installations
- UV Resistance: Outdoor exposure rated
- Temperature Range: Suitable for typical environmental conditions
