576-Splice Wall Mount Fiber Enclosure - High-Density Distribution Box

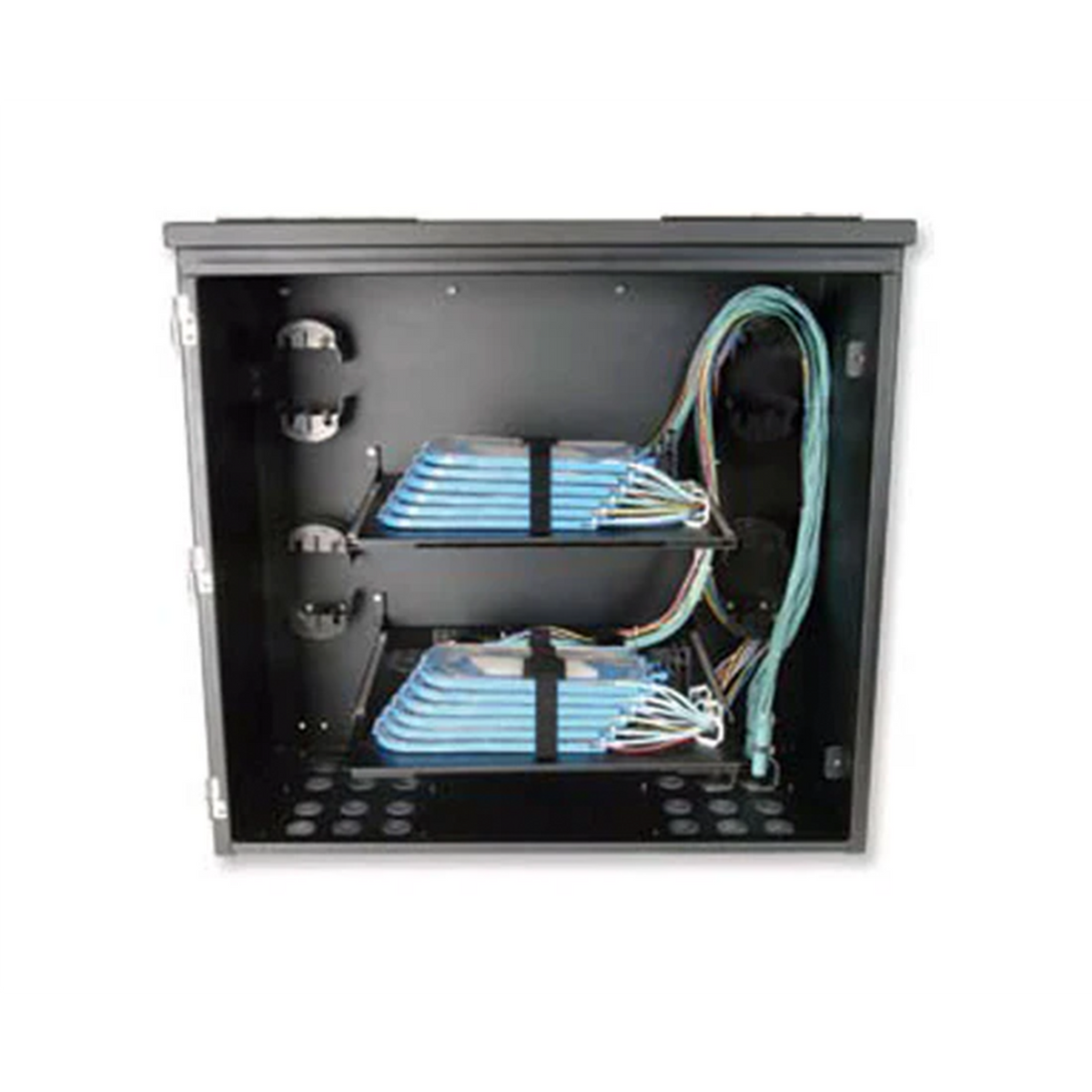

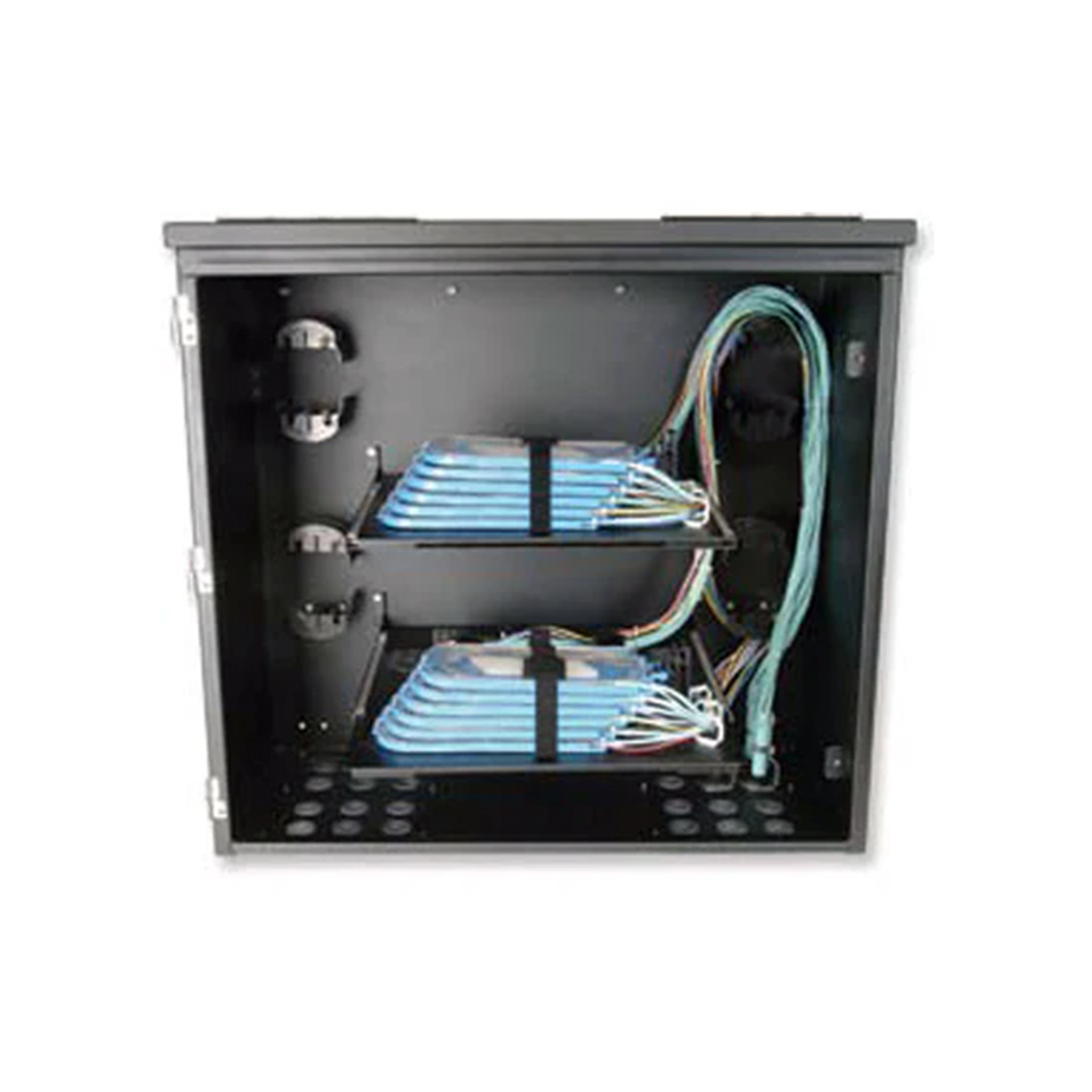

Enterprise-grade high-density wall-mounted fiber splice enclosure engineered for large-scale central splicing and cable management in data centers, telecommunications facilities, and carrier applications. This weather-tight aluminum enclosure supports up to 576 individual fusion splices (16 trays x 36 fibers) or over 2,000 mass fusion splices, making it ideal for backbone distribution, building entry points, and high-capacity fiber consolidation. Featuring dual slide-out splice tray support shelves with top and bottom cable entry, this professional-grade unit delivers maximum splice capacity in a compact wall-mount design.
Key Features
- 576 Splice Capacity - Supports 16 splice trays (24F or 36F configuration)
- High-Density Design - Maximum splice capacity in compact wall-mount footprint
- Dual Slide-Out Shelves - Two shelves with 8-tray stackers each for organized access
- Open Keyhole Hinging - Access individual trays without removal for fast maintenance
- Weather-Tight Construction - Indoor or outdoor-protected installation capability
- Top & Bottom Cable Entry - Dual entry plates support up to 16 liquid-tight cable seals (8 per plate)
- Corrosion-Resistant Materials - Aluminum construction with polyester powder-coat finish
- 0.080" Aluminum Construction - Lightweight yet durable professional-grade material
- Removable Door - Single outer door for complete interior access
- Mass Fusion Compatible - Supports >2,000 mass fused fibers for ribbon cable applications
- Professional Black Finish - Clean appearance for any installation environment
Ideal Applications
Perfect for high-capacity fiber distribution in enterprise and carrier environments:
- Data Centers - Core backbone distribution and consolidation
- Telecommunications Central Offices - High-density splice and distribution points
- Large Enterprise Buildings - Building entry and main distribution
- Campus Networks - Central fiber distribution hubs
- Carrier Hotels - Interconnection and cross-connect facilities
- Multi-Tenant Buildings - High-capacity MDU fiber distribution
- Government Facilities - Secure high-density fiber management
- Industrial Complexes - Large-scale manufacturing facility distribution
- Transportation Hubs - Airport, rail, transit fiber infrastructure
- Healthcare Campuses - Hospital and medical complex distribution
Physical Specifications
- Dimensions: 28" (H) x 25.25" (W) x 14.5" (D)
- Metric Dimensions: 711mm (H) x 641mm (W) x 368mm (D)
- Weight: 48 lbs (21.8 kg)
- Material: 0.080" Aluminum (lightweight yet durable)
- Finish: Corrosion-resistant polyester powder-coat
- Color: Black
- Mounting: Wall mount with mounting brackets
Capacity Specifications
-
Maximum Splice Capacity: 576 individual fusion splices
-
Splice Tray Configuration Options:
- 16x 24-fiber trays = 384 splices
- 16x 36-fiber trays = 576 splices (MAXIMUM)
-
Mass Fusion Capacity: >2,000 mass fused fibers (ribbon cable)
-
Splice Tray Storage: 16 trays total (2 shelves x 8 trays each)
-
Tray Access: Open keyhole hinging mechanism
Cable Entry Specifications
- Entry Locations: Top plate and bottom plate
- Cable Seals per Plate: 8 liquid-tight cable seals
- Total Cable Entry Points: 16 maximum (8 top + 8 bottom)
- Seal Type: Liquid-tight connectors (seals sold separately)
- Configuration: Field-configurable cable entry positions
Environmental Rating
- Application: Indoor or outdoor-protected installations
- Weather-Tight: Sealed construction when properly installed
- Corrosion Resistance: Aluminum + powder-coat finish
- Temperature Range: Standard telecommunications environment
- Moisture Protection: Weather-tight design with sealed cable entries
Interior Organization
- Splice Shelves: 2 slide-out support shelves
- Tray Stackers: 8-position tray stacker per shelf
- Tray Access: Individual tray access without removal
- Fiber Management: Integrated routing guides
- Capacity Planning: Organized for maximum density
What's Included
- 1x High-density fiber splice enclosure (aluminum, powder-coated black)
- 2x Slide-out splice tray support shelves with 8-position stackers
- Top and bottom cable entry plates
- Removable outer door
- Mounting hardware
