Home » 5-15P to C13 Power Cord, SJT 14/3 Rated

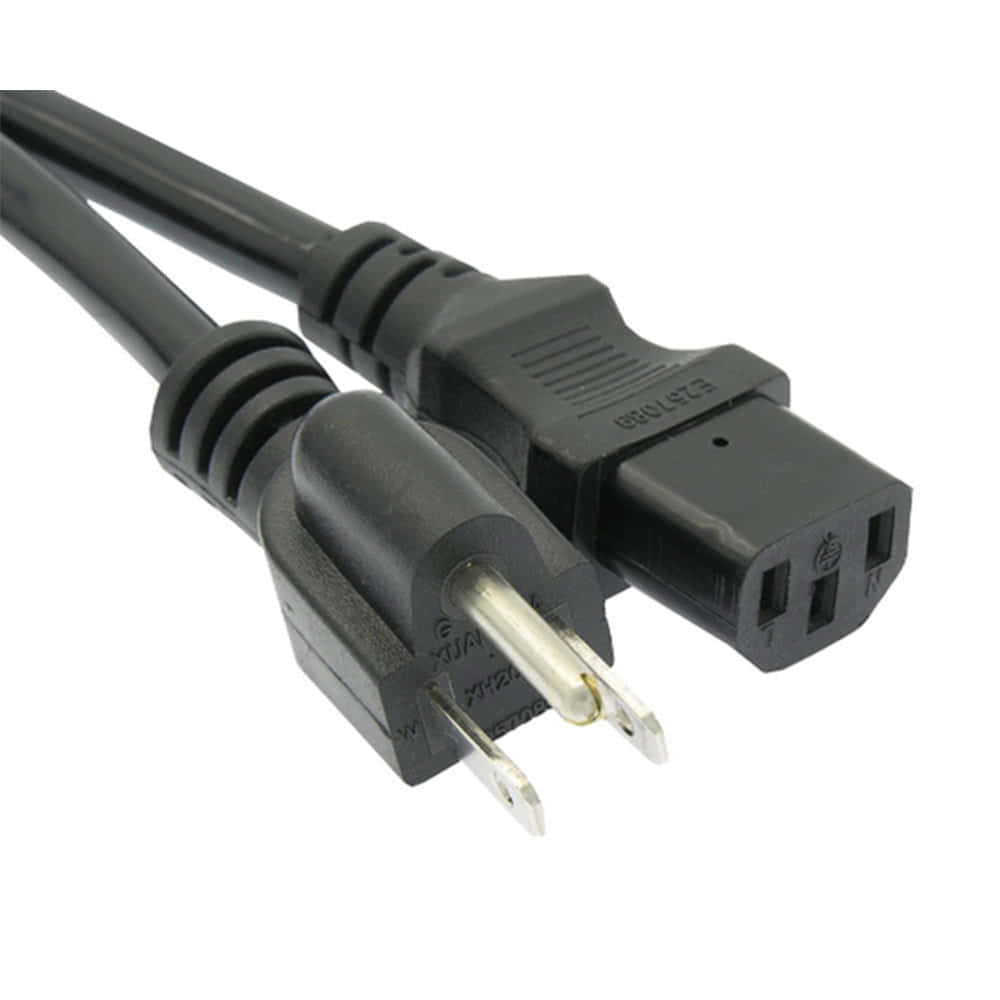

A black 5-15P to C13 power cord, 14/3 rated.
A black 5-15P to C13 power cord, 14/3 rated.
Patch Cords Online

5-15P to C13 Power Cord, SJT 14/3 Rated

SKU: PWRAA-1BLK
$2.72
Length

Our 5-15P to C13 Heavy-Duty Power Cord, with 14 AWG wire, delivers maximum power to computers, high-power workstations, and professional office equipment. This professional-grade cable features a NEMA 5-15P three-prong wall plug on one end and an IEC-320 C13 female connector on the other, making it the perfect heavy-duty replacement or extension cord for equipment requiring robust power connections. Built with premium 14 AWG 3-conductor SJT cable rated for 15A at 125V AC (1875W), this UL- and CSA-approved power cord delivers exceptional performance compared to standard 18 AWG or 16 AWG cables, with significantly lower voltage drop, superior current handling, and reduced heat generation. Available in multiple lengths to suit any installation, you can order the exact length you need to keep your workspace neat, tidy, and free of excess cable clutter.

Key Features

  • Standard Configuration: NEMA 5-15P wall plug to IEC-320 C13 computer connector
  • Heavy-Duty 14 AWG: Thickest gauge wire provides maximum current capacity
  • 15A Rating: Handles up to 15 amps at 125V AC (1875W maximum)
  • Professional Grade: Superior performance for demanding applications
  • 50% More Power: 1875W vs. 1250W for standard 18 AWG cables
  • Universal Compatibility: Works with all North American computers and office equipment
  • Multiple Lengths Available: Order the exact length you need for clean installations
  • UL & CSA Approved: Certified for safety by recognized North American testing laboratories
  • RoHS Compliant: Environmentally friendly, lead-free construction
  • SJT Jacket: Durable thermoplastic elastomer jacket for flexibility and longevity

Specifications

  • Connector Type A: NEMA 5-15P male plug (standard three-prong wall plug)
  • Connector Type B: IEC-320 C13 female connector (computer equipment inlet)
  • Cable Type: SJT (Junior Service Thermoplastic Elastomer)
  • Wire Gauge: 14 AWG / 3-conductor
  • Conductor Construction: 41/0.25 stranding for flexibility
  • Voltage Rating: 125V AC (300V insulation rating)
  • Current Rating: 15 Amps
  • Power Rating: 1875 Watts maximum
  • Color: Black (typical)
  • Certifications: UL Listed (E313867), CSA Approved (LL95737), RoHS Compliant

Technical Specifications

Conductor Details:
  • AWG: #14 (41/0.25 stranding)
  • Resistance: ≤ 22.4 ohms/km at 20°C, ≤ 22.8 ohms/km at 25°C
  • Material: Copper wire for optimal conductivity
Insulation:
  • Minimum Thickness: 0.76mm
  • Diameter: 2.08 ± 0.1mm
  • Type: SJT-rated thermoplastic
Jacket:
  • Minimum Thickness: 0.76mm
  • Overall Diameter: 9.4 ± 0.2mm
  • Material: Flexible PVC outer jacket
Electrical Testing:
  • Voltage Rating: AC ≥ 1500V/S (tested)
  • Plug Rating: 125V 10A (UL-E94923, CSA-LR62202)
  • Wire Rating: SJT 14/3, 300V 15A (UL-E313867, CSA-LL95737)
  • Insulation Test: High voltage tested for safety

Applications

  • High-Performance Workstations: Professional computing equipment
  • Desktop Computers: Enhanced power delivery for PCs requiring maximum capacity
  • Large Monitors: Professional displays and multi-monitor setups
  • Laser Printers: High-wattage commercial and industrial printers
  • Office Equipment: Heavy-duty copiers and multifunction devices
  • Projectors: High-brightness business and home theater projectors
  • HDTVs: Large flat-panel televisions
  • Network Equipment: Enterprise switches, routers, and high-power networking gear
  • Audio/Video Equipment: Receivers, amplifiers, and professional production gear

Usually ships in 3 - 4 business days.
