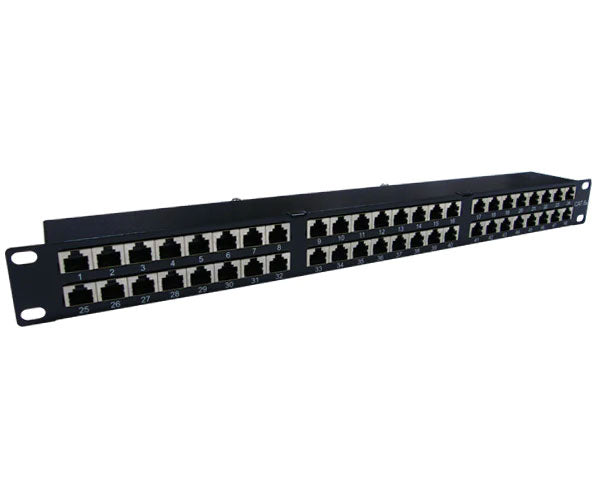

48-Port Shielded CAT6A Patch Panel – 1U Rackmount with STP Protection
Regular price
$209.99
Couldn't load pickup availability
48-Port Shielded CAT6A Patch Panel – 1U Rackmount with STP Protection
Our preloaded shielded CAT6A patch panel provides superior protection against electromagnetic interference in high-speed 10Gb network environments, especially when copper cables run near power sources. Featuring 48 flush-mounted RJ45 ports with full shielding, this professional-grade panel supports PoE++ (802.3bt) 4PPoE up to 100W, meeting and exceeding industry standards for safety and maximum network performance.
Key Features
- Premium shielded CAT6A patch panel with EMI protection for 10Gb networks
- 48 flush-mounted shielded RJ45 ports
- PoE++ (802.3bt) 4PPoE support up to 100W
- Constructed from solid 16-gauge steel with rounded edges for safety
- Compatible with 22-26 AWG stranded and solid CAT6A cable
- Standard 19" rack and enclosure mountable
- Complete installation kit included: cable ties, mounting screws, ground wire, and instructions
- TIA/EIA 568A and 568B compliant
- UL Listed and RoHS compliant
Technical Specifications
- Configuration: Shielded, 48 RJ45 ports (8-pin, 8-conductor)
- Rack Size: 1U
- Port Count: 48 ports
- Dimensions: 19" W × 1.75" H × 4.3" D (482.6mm × 44.45mm × 109mm)
- Weight: 6 lbs
- Panel Material: SPCC 1.5mm steel with black powder coat finish
- Cable Compatibility: 22-26 AWG stranded/solid CAT6A
- Connection Type: RJ45 - 8 pins, 8 conductors

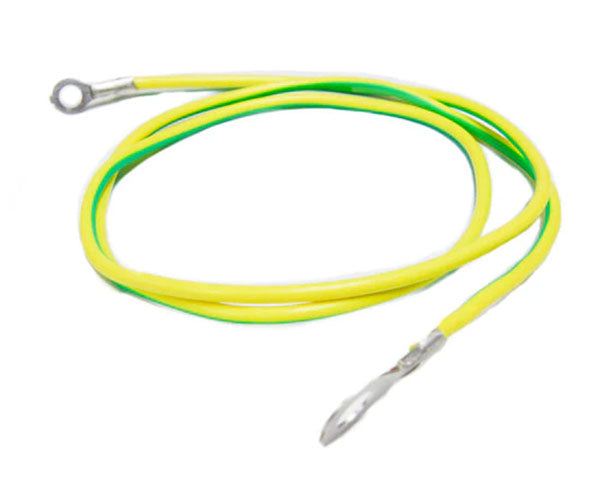

- Ground Wire: 18 AWG, 40cm length
- Power Support: PoE++ (802.3bt) up to 100W
- Network Speed: Supports 10Gb Ethernet
- Certifications: UL Listed, RoHS Compliant, TIA/EIA 568A/B
