45U LINIER® Server Cabinet - No Doors - 36" Depth (3180-3-001-45)
This item is built to order and ships by LTL freight. Due to its size and weight we provide a custom quote for each order. Please click the Request Quote button and fill out all fields so we can give you an accurate lead time and shipping cost. We always begin production and ship as soon as possible, but times are not guaranteed.
Couldn't load pickup availability

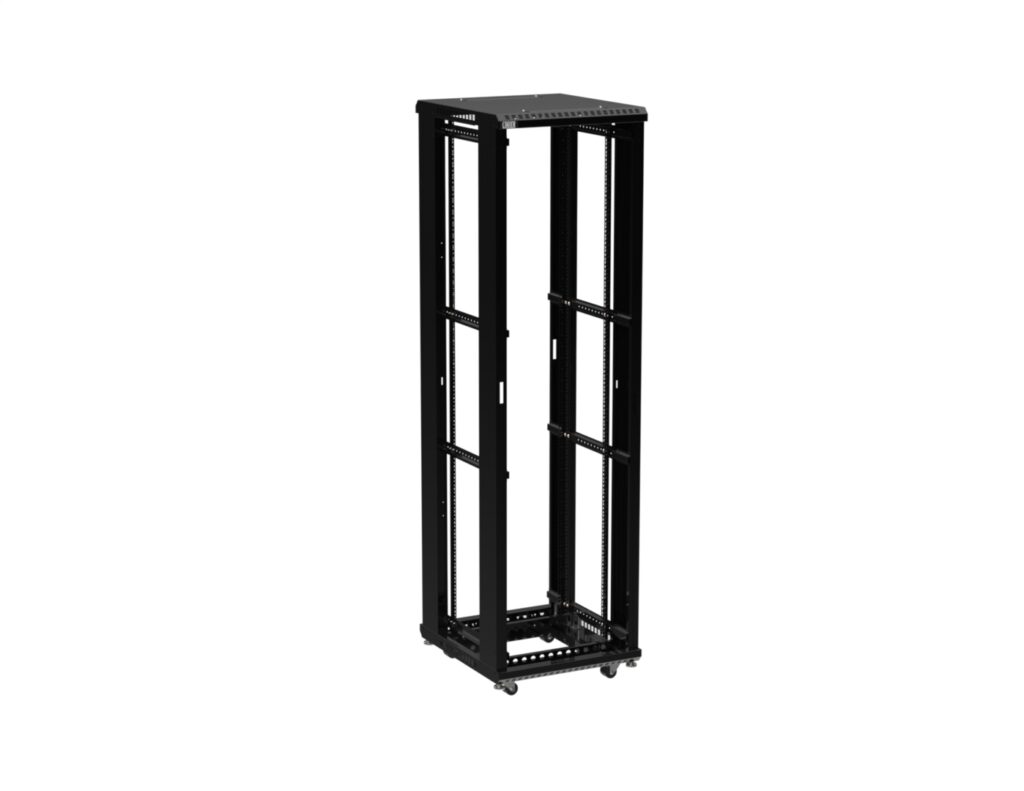

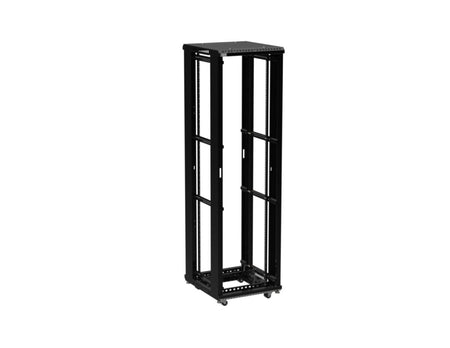

Optimize your high-performance networking setup with the Kendall Howard 45U LINIER® Open-Frame Server Cabinet featuring no doors and a spacious 36" usable depth for unrestricted access and superior airflow. This USA-made 45U server rack is ideal for data centers, offices, or A/V environments, accommodating large network servers, battery backups, switching banks, and other bulky equipment, with a heavy-duty load capacity of 1300 lb (800 lb on casters). Designed for efficient cable management, with laser knockouts for optional fan installation, removable slots, adjustable cage-nut-style mounting rails, and lockable side panels for flexible protection, this no-door network cabinet ensures quick maintenance, optimal cooling, and seamless customization. Compliant with 19" EIA standards and backed by a 5-year limited warranty, the LINIER® 3180 series open frame server enclosure (available in 22U, 27U, 37U, 42U, and 45U sizes) delivers cost-effective, adaptable IT infrastructure solutions for modern demands—upgrade your space with this versatile 36-inch depth server rack today.
Features
- Open-Frame Design for Maximum Airflow and Accessibility: This no-doors open-frame network cabinet provides unrestricted front and rear access to keep your 45U server equipment cool and maintenance-ready, perfect for high-density data center installations.
- Spacious 36" Usable Depth: Accommodates larger networking gear, such as servers and UPS systems, efficiently (also available in 24" depth for compact setups in the LINIER® 3180 series server rack line).
- Adjustable Cage Nut-Style Mounting Rails: This package includes two sets of vertical rails for versatile 4-point installations of switches, patch panels, and more in your 45U no-door server enclosure, ensuring flexible equipment fitting.

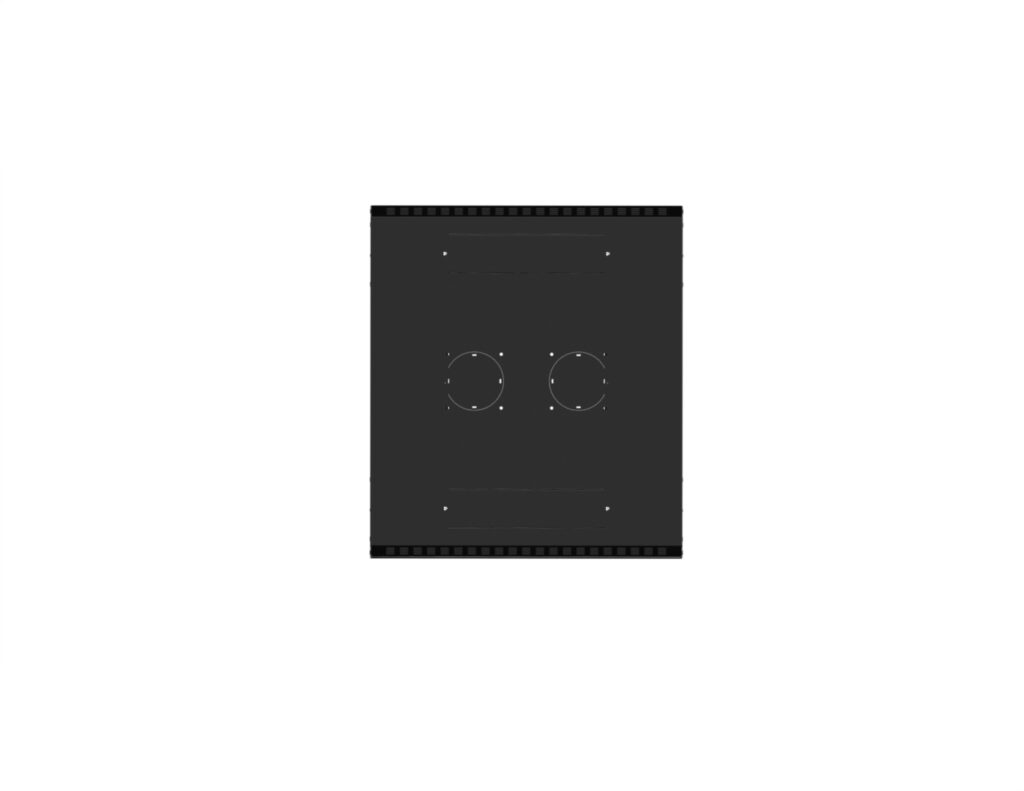

- Optimized Cable Management with Laser Knockouts: Top panel features removable slots and knockouts for seamless copper/fiber routing and optional fan kits, enhancing ventilation in this airflow-optimized 36" depth network cabinet.

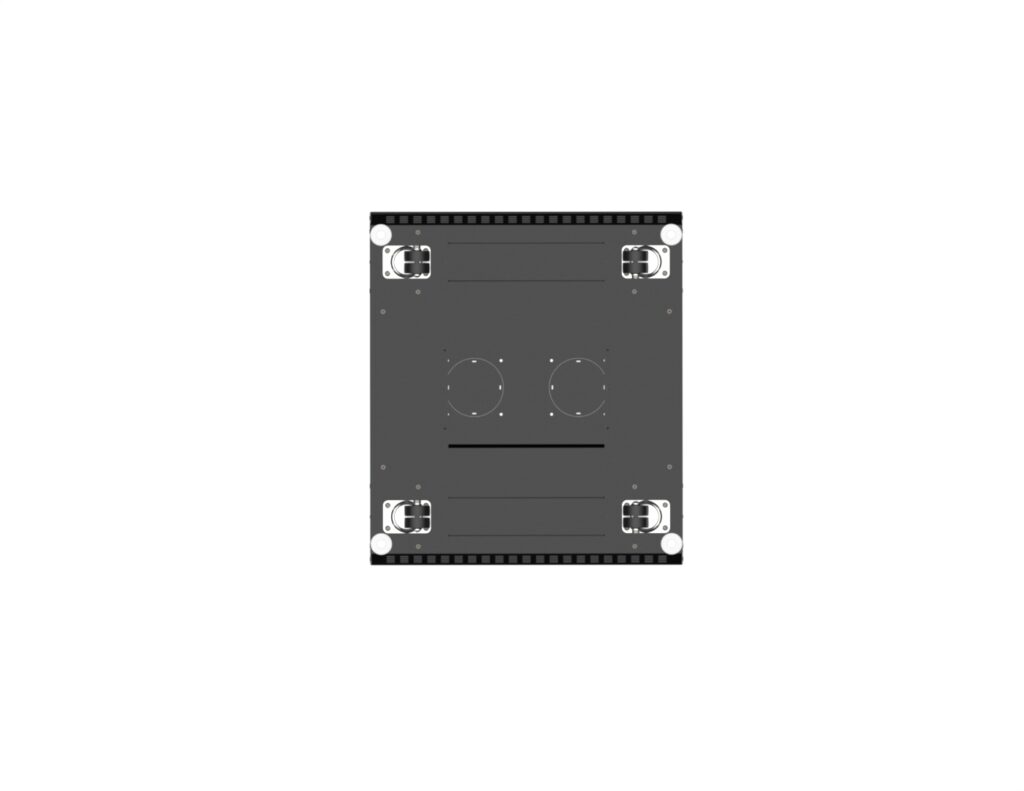

- Preinstalled Casters and Levelers: Enable effortless mobility and precise positioning in any IT environment, making setup and relocation simple for your 45U open-frame server rack.
- Heavy-Duty 1300 lb Load Capacity (800 lbs on Casters): Supports substantial equipment loads reliably, ideal for demanding telecom and datacom applications in this robust CRS-constructed server cabinet.
- Multiple Size Options in the Series: Choose from 22U, 27U, 37U, 42U, or 45U configurations to meet your specific networking needs with this adaptable LINIER® open-frame rack solution.
- 5-Year Limited Warranty: This warranty guarantees long-term durability and reliability for your investment in this USA-crafted, high-performance, no-door server enclosure with lockable side panels.
Specifications
- Width: 24"
- Depth: 38" (Usable 36")
- Height: 86" (with casters)
- Weight: 194.00 lbs.
- Shipping Dimensions: 32" x 45" x 91"
- Material: CRS (Cold Rolled Steel)
- Color/Finish: Medium Texture Black
