24 Port CAT5E Shielded Patch Panel, 19-Inch Rackmount - 1U
Couldn't load pickup availability

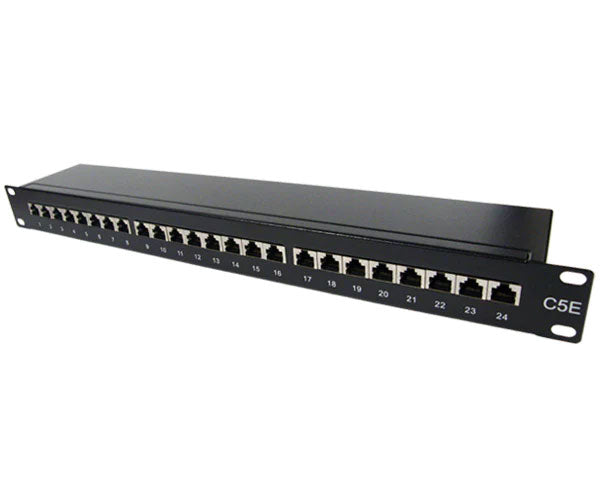

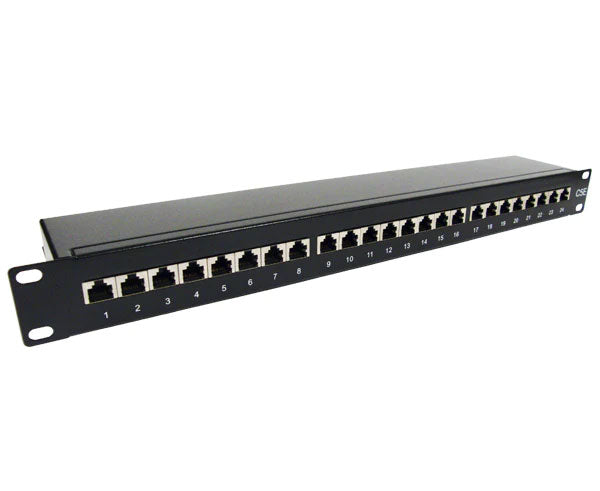

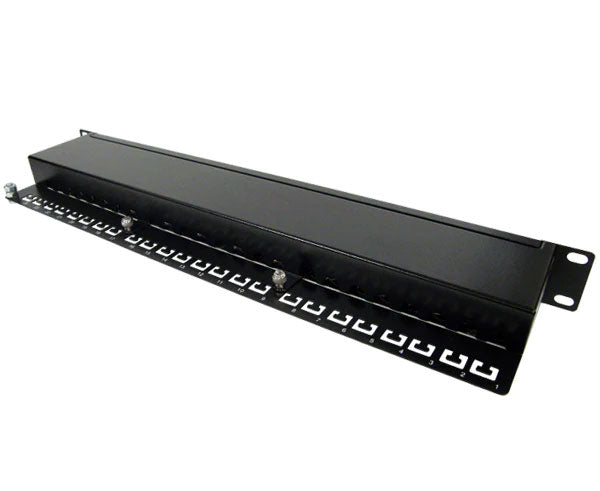

CAT5E 24-Port Shielded Network Patch Panel - 1U Rack Mount
This 24-Port CAT5E patch panel is ideal for installations in industrial, retail, wiring closets, and network distribution applications. This CAT5E patch panel has 24 flush-mounted RJ45 ports with color-coded labels for both T568A and T568B wiring standards.
Additionally, it has inbuilt cable strain relief and a shielded cover with grounding wire for further protection against EMI interference.
Our CAT5E patch panel meets UL standards and is UL Listed. Additionally, this patch panel is RoHS compliant and meets TIA/EIA 568A & 568B standards. The shielded flush-mounted RJ45 ports help eliminate cable snags and create a professional-looking installation.
Usually ships in 1 - 2 days.
Features
This CAT5E Patch Panel is constructed with 16 gauge steel. The RJ45 connectors include gold-plated phosphor bronze contacts allowing many connection/disconnection cycles. The 110-IDC termination contacts are also phosphor bronze with 50 micro-inch tin-lead plated over nickel-plated contacts for excellent performance.
- 24 Flush Mounted RJ45 Ports
- CAT5E Rated
- 19" Rack Mountable
- Includes 10-32 Screws, Cable Ties & Instructions

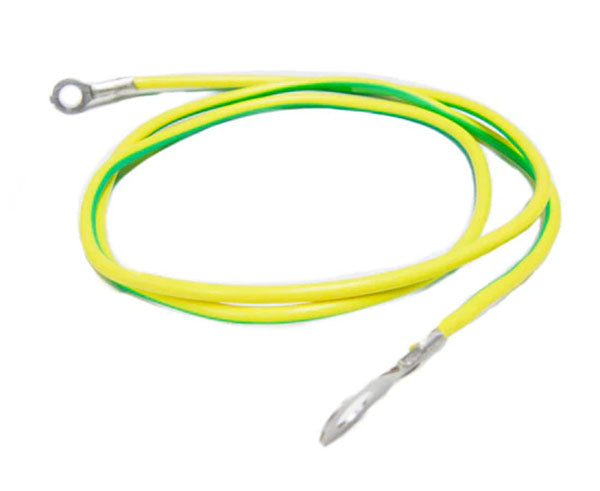

- 16 Inch Ground Wire with Ring Terminals

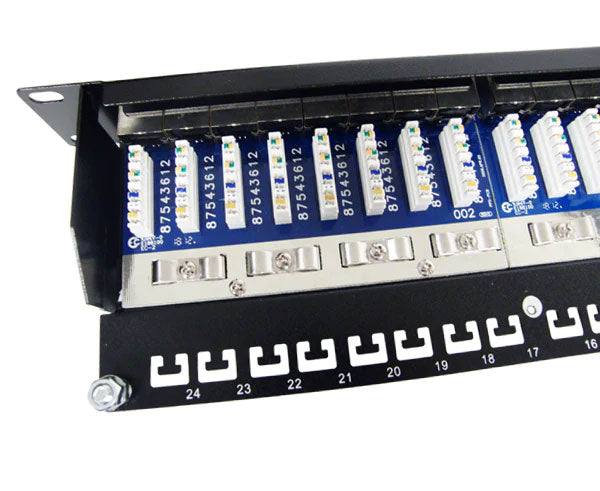

- Color-coded 110/Krone termination blocks
- T568A & T568B Compliant
- Suitable For 22 - 26 AWG Cable
Port Count | 24 Ports |
Height | 1U (1.75 in) |
Width | 19 Inches |
Depth | 4.5 Inches |
Panel Material | 16 Gauge SPCC Steel |
RJ45 Housing | UL 94V-0 |
