24 Port CAT5E Unshielded Patch Panel, 19-Inch Rackmount - 1U

In stock
SKU: PP5E-24NR
Regular price $32.99

CAT5E 24-Port Network Patch Panel - 1U Rack Mount

This 24-Port CAT5E patch panel is ideal for installations in home theatre, retail, wiring closets, and network distribution applications. This CAT5E patch panel has 24 flush-mounted RJ45 ports with color-coded labels for both T568A and T568B wiring standards.

Our CAT5E patch panel meets UL standards and is UL Listed. Additionally, this patch panel is RoHS compliant and meets TIA/EIA 568A & 568B standards. The flush-mounted RJ45 ports help eliminate cable snags and create a professional-looking installation.

Usually ships in 1 - 2 days.

Features

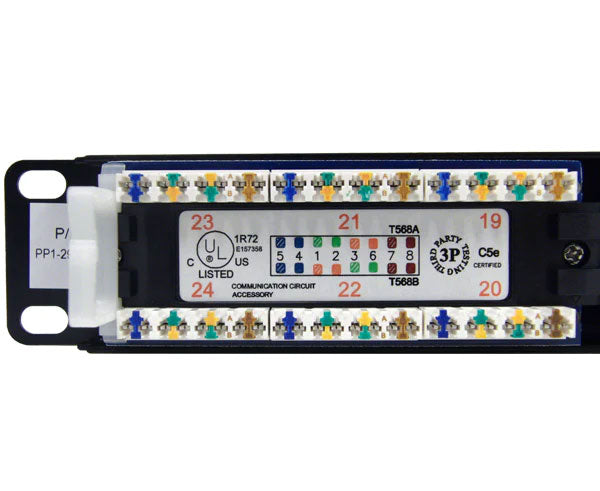

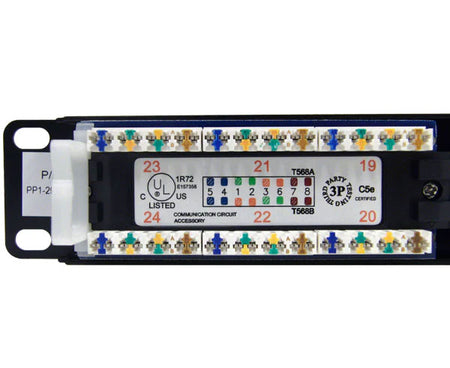

This CAT5E Patch Panel is constructed with 16 gauge steel. The RJ45 connectors include gold-plated phosphor bronze contacts allowing many connection/disconnection cycles. The 110-IDC termination contacts are also phosphor bronze with 50 micro-inch tin-lead plated over nickel-plated contacts for excellent performance.

  • 24 Flush Mounted RJ45 Ports
  • CAT5E Rated
  • 19" Rack Mountable
  • Includes 10-32 Screws, Cable Ties & Instructions

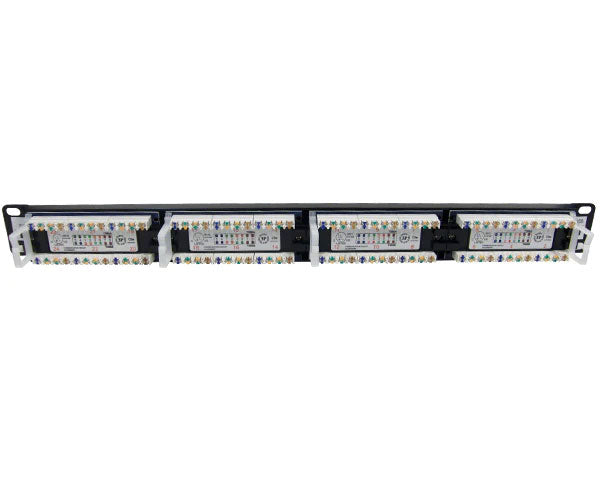

  • Color-coded 110/Krone termination blocks
  • T568A & T568B Compliant
Specifications
Port Count 24 Ports
Height 1U (1.75 in)
Width 19 Inches
Depth 2.25 Inches
Panel Material 16 Gauge SPCC Steel
RJ45 Housing UL 94V-0
