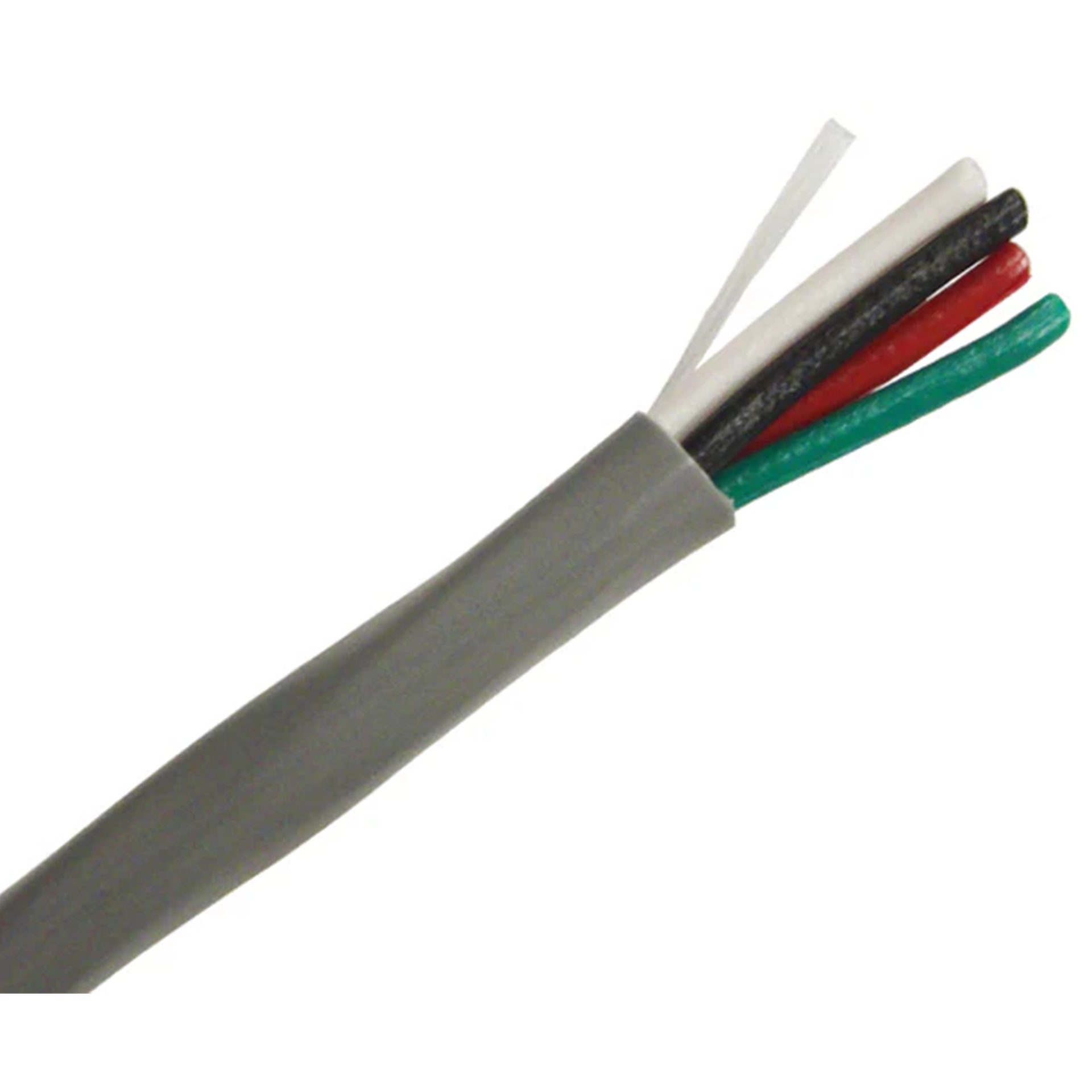

22/4 AWG Riser Security Alarm Cable - CMR/CL3R Rated, Unshielded, 1000ft Gray

22/4 AWG Riser Security Alarm Bulk Cable - CMR/CL3R Rated, Unshielded, 1000ft

This professional-grade 22 AWG 4-conductor riser security alarm bulk cable is engineered for reliable performance in vertical runs between floors in residential and commercial buildings. Featuring stranded bare copper conductors, this CMR-rated unshielded cable meets strict fire safety standards for riser applications while providing a cost-effective solution for installations in low-interference environments.

Proudly made in the USA, this versatile cable is ideal for security systems, CCTV cameras, intercoms, audio distribution, and power-limited control circuits. The 4-conductor configuration provides versatility for various security and communication applications. With sequential footage marking for accurate tracking and supplied in a convenient 1,000 ft pull-box, this cable provides reliable performance for demanding installations. ETL listed and RoHS compliant for quality assurance and code compliance.

Key Features

• Riser rated (CMR/CL3R) for installation in vertical shafts between floors
• Unshielded design for cost-effective installations in low-interference environments
• 22 AWG 4-conductor configuration perfect for CCTV, security, and intercom applications
• 7-strand bare copper conductors provide flexibility during installation
• Sequential footage marking printed on jacket for accurate measuring and tracking
• Gray PVC jacket low-smoke construction for code compliance
• CMR FT4 fire test rated enhanced fire safety performance
• ETL listed and RoHS compliant for safety and quality assurance
• Made in USA for consistent quality and reliability
• Pull-box packaging 1,000 ft for convenient, tangle-free dispensing
• Code compliant meets NEC requirements for riser installations
• Versatile 4-conductor design suitable for multiple applications

Ideal Applications

• Security and burglar alarm systems
• CCTV security camera wiring
• Fire alarm and life safety systems
• Intercom and communication systems
• Sound and audio distribution networks
• Access control systems
• Power-limited control circuits
• Multi-floor residential and commercial installations
• Vertical runs in non-plenum spaces
• Applications requiring four conductors

Technical Specifications

Cable Type & Performance

• Category: Security alarm cable
• Gauge: 22 AWG (4 conductors)
• Construction: Stranded (7 strands per conductor)
• Shielding: Unshielded (cost-effective for low-interference environments)
• Voltage Rating: 300V
• Temperature Rating: 75°C

Physical Construction

• Conductor Material: Bare copper, stranded
• Strand Count: 7 strands per conductor
• Conductor Insulation: PVC
• Outer Jacket Material: PVC, gray
• Sequential Footage Marking: Yes, printed on jacket

Conductor Color Code

• Black
• Red
• White
• Green

Fire & Safety Ratings

• Jacket Rating: CMR (Communications Riser)
• CL3R Rating: Class 3 Riser for power-limited circuits
• Fire Test: FT4 rated for enhanced fire safety
• NEC Articles: 725 (CL2R/CL3R), 760 (FPLR), 800 (CMR)

Packaging

• Length: 1,000 feet
• Package Type: Pull-box for tangle-free dispensing
• Country of Origin: Made in USA

Compliance & Certification

• ETL Listed
• RoHS Compliant
• NEC compliant for riser installations
• Meets building code requirements for vertical runs
• Made in USA

Installation Notes

This 22/4 riser security alarm bulk cable is specifically designed for vertical installations between floors in non-plenum spaces, such as riser shafts, elevator shafts, and vertical cable runs in walls. The CMR/CL3R rating ensures the cable meets fire safety requirements for these applications.

CMR/CL3R Riser Rating: The dual CMR/CL3R rating indicates:

• CMR (Communications Riser): Suitable for vertical runs per NEC Article 800
• CL3R (Class 3 Riser): Suitable for power-limited circuits per NEC Article 725
• FT4 Fire Test: Enhanced fire safety performance
• Meets fire safety standards for riser applications
• NOT suitable for plenum spaces (use CMP-rated cable)
• Appropriate for vertical cable runs between floors

Unshielded Construction: The unshielded design makes this cable ideal for:

• Installations where electromagnetic interference is not a concern
• Cost-effective solution for basic alarm circuits
• Residential installations and low-interference commercial environments
• Applications where shielding is not required by specification
• Budget-conscious projects requiring reliable performance

Stranded Conductor Benefits: The 7-strand construction provides:

• Flexibility for routing around corners and through tight spaces
• Easier handling during installation
• Good balance between flexibility and performance
• Suitable for both short and long runs

22 AWG 4-Conductor Configuration: The 4-conductor design provides:

• Versatility for various security and communication applications
• Sufficient conductors for most CCTV camera installations
• Multiple circuit capability in a single cable
• Color-coded conductors for easy identification and termination

When to Choose 4-Conductor: Choose this 4-conductor cable when:

• CCTV cameras requiring power and video
• Basic security alarm zones with auxiliary circuits
• Intercom systems requiring multiple wires
• Audio distribution (stereo)
• Access control devices
• Any application requiring four wires

Made in USA: USA manufacturing ensures:

• Consistent quality control
• Compliance with domestic standards
• Support for American manufacturing
• Reliable supply chain
• Professional-grade materials and construction

Sequential Footage Marking: The printed footage markers on the jacket allow you to:

• Track cable usage and remaining length in the pull-box
• Calculate exact lengths needed for vertical runs
• Maintain accurate installation documentation
• Avoid waste and ensure adequate supply

Installation Best Practices:

• Verify local building codes before installation
• Use appropriate jacket rating for installation location (CMR for risers)
• Maintain minimum bend radius (4x cable diameter)
• Support cable properly per NEC requirements for vertical runs
• Use fire-stopping materials at floor penetrations
• Label cables at both ends for easy identification
• Document color code assignments for future reference

22/4 Unshielded Configuration Applications: The 4-conductor unshielded design is perfect for:

• CCTV cameras requiring power and video connections
• Basic security alarm zones
• Intercom systems
• Audio distribution (stereo)
• Access control devices
• Power-limited control circuits
• Any application requiring four conductors

Cost-Effective Professional Solution: This cable offers excellent value by:

• USA-made quality at competitive pricing
• Reliable performance for standard installations
• ETL listed professional-grade construction
• Reduces installation costs in low-interference environments
• Versatile 4-conductor configuration

This professional-grade USA-made riser security alarm bulk cable provides reliable, code-compliant performance for vertical installations in residential and commercial buildings where cost-effective unshielded cable is required for optimal system performance.
