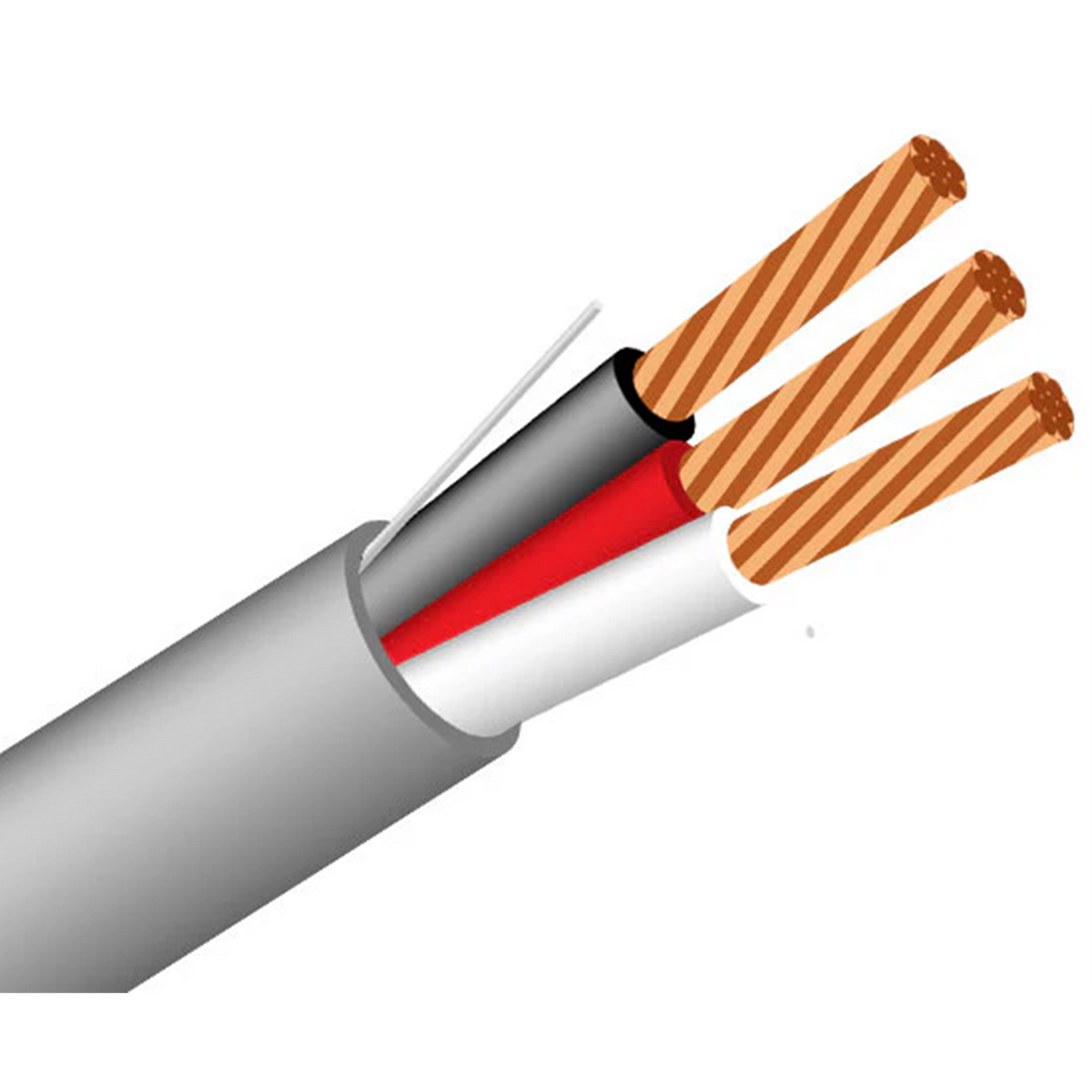

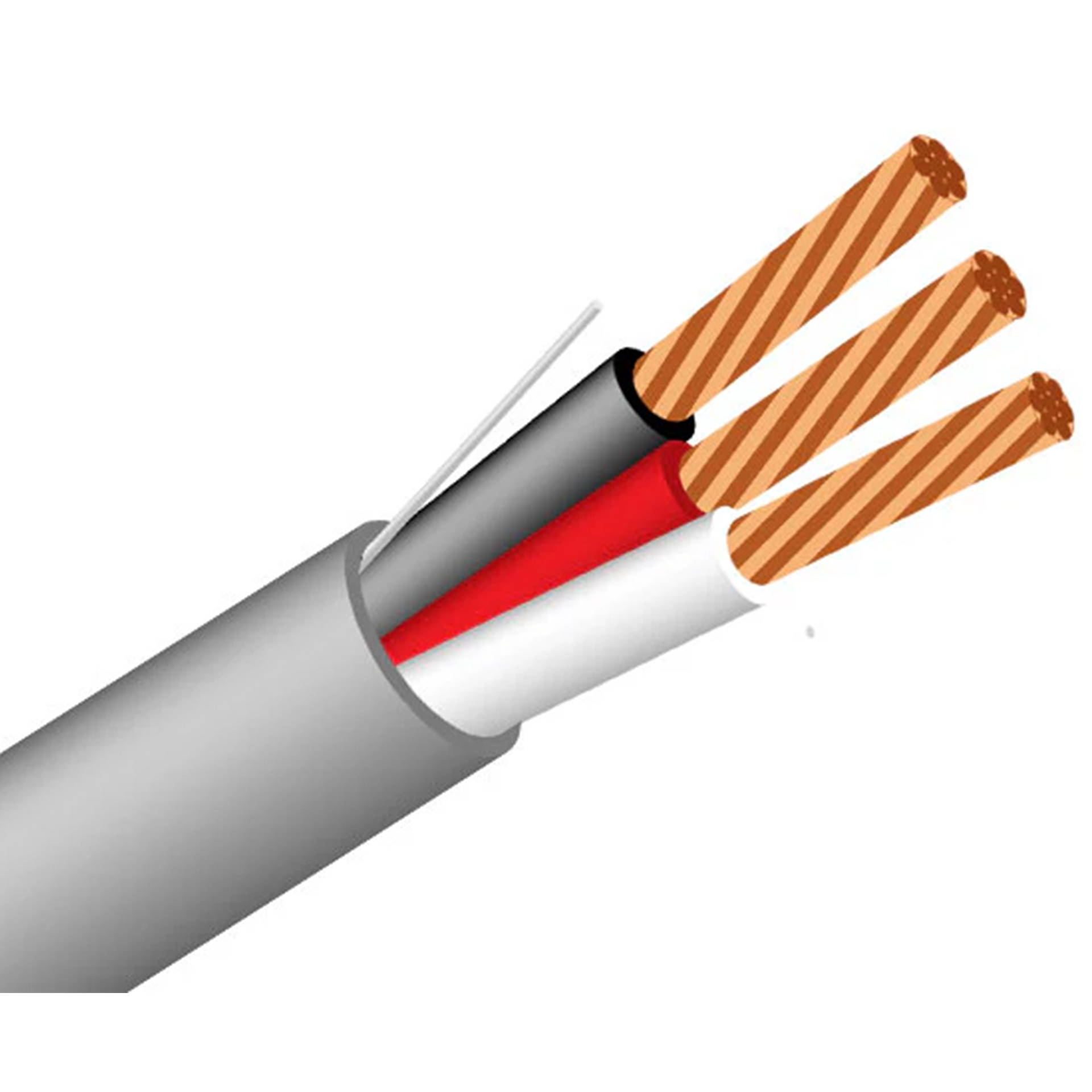

22/3 AWG Riser Security Alarm Cable - CMR/CL3R Rated
This professional-grade 22 AWG 3-conductor riser security cable is engineered for reliable performance in vertical runs between floors in residential and commercial buildings. Featuring stranded bare copper conductors and a low-smoke PVC jacket, this CMR-rated unshielded cable meets strict fire safety standards for riser applications.
Proudly made in the USA, this versatile cable is ideal for security systems, intercoms, audio distribution, and power-limited fire alarm circuits. The convenient rip cord and sequential footage marking simplify installation and troubleshooting. UL and ETL listed for quality assurance and code compliance.
Key Features
- Riser rated (CMR/CL3R) for installation in vertical shafts between floors
- Unshielded construction for cost-effective installations in low-interference environments
- 3 color-coded conductors for easy identification and termination
- Stranded copper construction for flexibility during installation
- Rip cord jacket for quick and easy stripping
- Sequential footage marking for accurate measuring and tracking
- UL and ETL listed for safety and compliance
- RoHS compliant for environmental standards
- Made in USA for consistent quality and reliability
Ideal Applications
- Security and burglar alarm systems
- Fire alarm and life safety systems
- Intercom and communication systems
- Sound and audio distribution networks
- Access control systems
- Power-limited control circuits
- Multi-floor residential and commercial installations
Technical Specifications
Conductors
- AWG Size: 22/3 (3 conductors)
- Strand Count: 7 strands per conductor
- Material: Bare copper
- Construction: Stranded for flexibility
- Individual Conductor Diameter: 1.2mm
- Conductor Resistance: 21.20 Ω/km
Conductor Color Code
- Black
- Red
- White
Insulation & Jacket
- Conductor Insulation: PVC
- Shield: Unshielded
- Outer Jacket: Low smoke PVC with rip cord
- Jacket Color: Gray
- Jacket Thickness: 0.38mm
- Nominal Overall Diameter: 3.76mm
Electrical Ratings
- Voltage Rating: 300V
- Temperature Rating: 75°C
- NEC Articles: 725 (CL2R/CL3R), 760 (FPLR), 800 (CMR)
Certifications & Compliance
- CMR (Communications Riser) Rated
- CL3R (Class 3 Riser) Rated
- FPLR (Fire Power Limited Riser)
- UL Listed
- ETL Listed
- RoHS Compliant
- Made in USA
Packaging & Marking
- Spool Length: 1000 feet
- Sequential footage marking on jacket
- Rip cord for easy jacket removal
Installation Notes
This riser-rated cable is designed for vertical installations between floors in non-plenum spaces, such as riser shafts, elevator shafts, and vertical cable runs in walls. The CMR rating ensures the cable meets fire safety requirements for these applications.
The unshielded construction makes this cable ideal for installations where electromagnetic interference is not a concern, providing a cost-effective solution for basic alarm circuits. The 3-conductor configuration is perfect for security zones, door contacts, motion detectors, and other devices requiring three wires. The convenient rip cord allows for quick jacket removal during termination.
Always consult NEC Article 725, 760, and 800 requirements and local building codes before installation.
