16/4 Plenum (FPLP) Fire Alarm Cable
Designed for power-limited fire alarm systems, this 16/4 FPLP plenum-rated cable features four solid bare copper conductors with a low-smoke PVC jacket for safe installation in environmental airflow spaces. The thicker 16 AWG conductors provide lower resistance and higher current capacity, making this cable ideal for longer runs and demanding applications including smoke detectors, fire protection systems, and control circuits.
Trust UL and ETL-listed quality for your critical life-safety systems. This USA-made fire alarm cable delivers the reliability and performance needed when lives depend on instant response from your fire detection and notification systems.
Key Features
- Low-smoke FT6 plenum-rated PVC jacket for safe use in air handling spaces
- Sequential footage markings for easy installation tracking
- Unshielded design for standard fire alarm applications
- UL-Listed and ETL-Listed
- RoHS Compliant
- 300V voltage rating | 75°C temperature rating
- Made in USA
Applications
- Fire alarm wiring
- Fire protection systems
- Signal transmission
- Monitoring and detection systems
- Audio circuits
- Notification circuits
- Control circuits
- Initiating circuits
Technical Specifications
Physical Construction

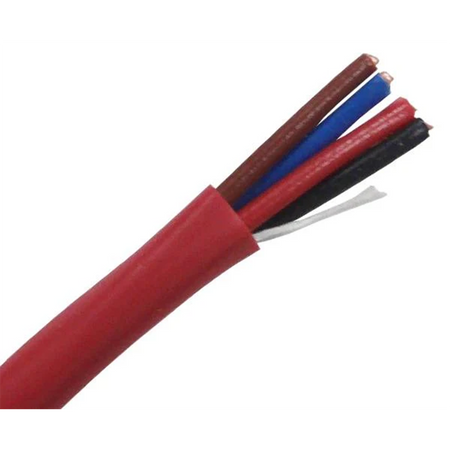

- Conductor type: Solid bare copper
- Conductor size: 16 AWG (4 conductors)
- Conductor insulation: Low-smoke PVC, 0.08 in. thickness
- Nominal cable OD: 4.88 mm (0.192 in.)
- Outer jacket: Low-smoke PVC, 0.381 mm (0.015 in.) thickness
- Jacket color: Red
- Shielding: None (unshielded)
Electrical Characteristics
- Voltage rating: 300V
- Temperature rating: 75°C
- Conductor colors: Black, Red, Brown, Blue
Why Choose 16 AWG?
Compared to 18 AWG cables, this 16 AWG option offers lower resistance and higher current capacity, making it the preferred choice for longer cable runs, higher-power devices, and installations where voltage drop is a concern.
