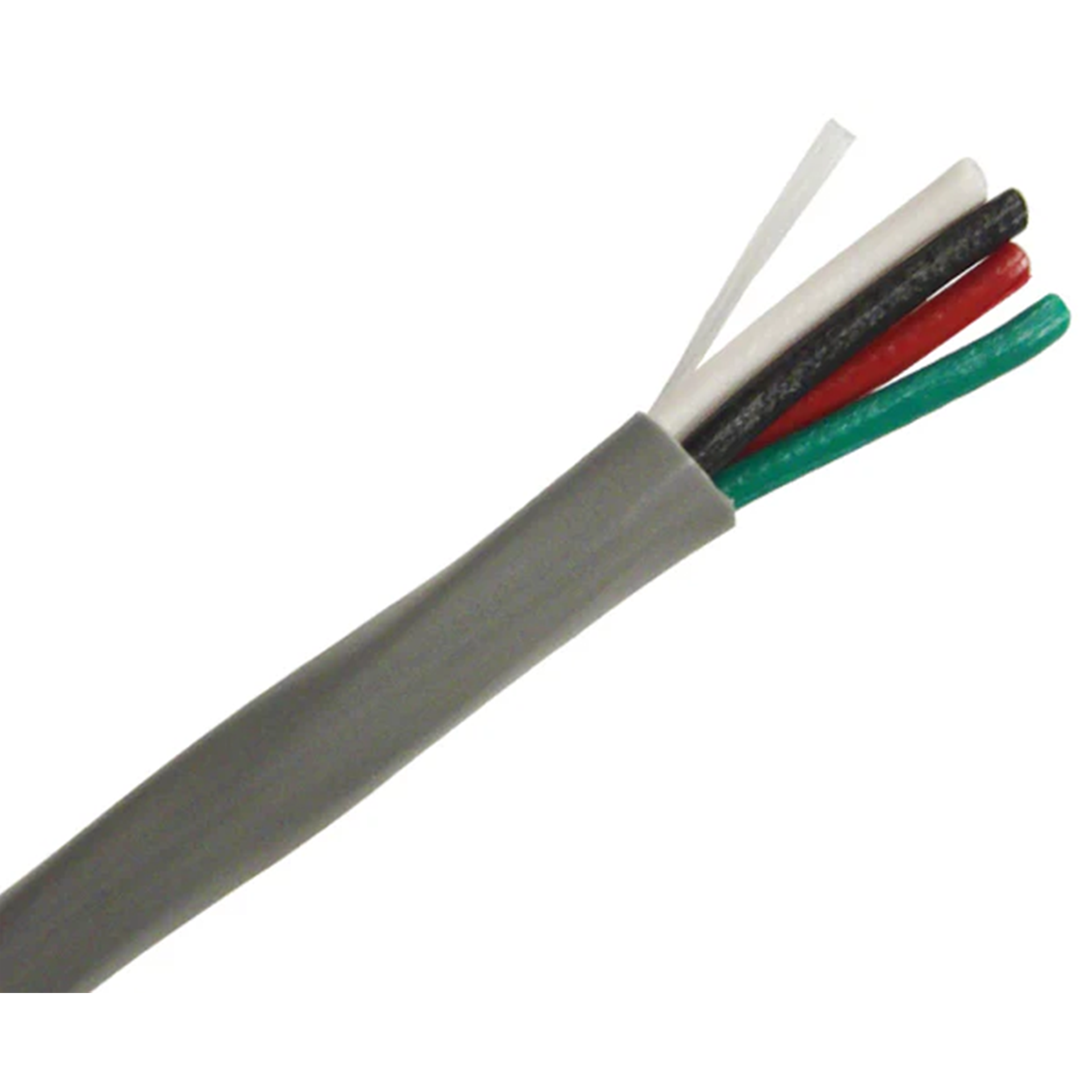

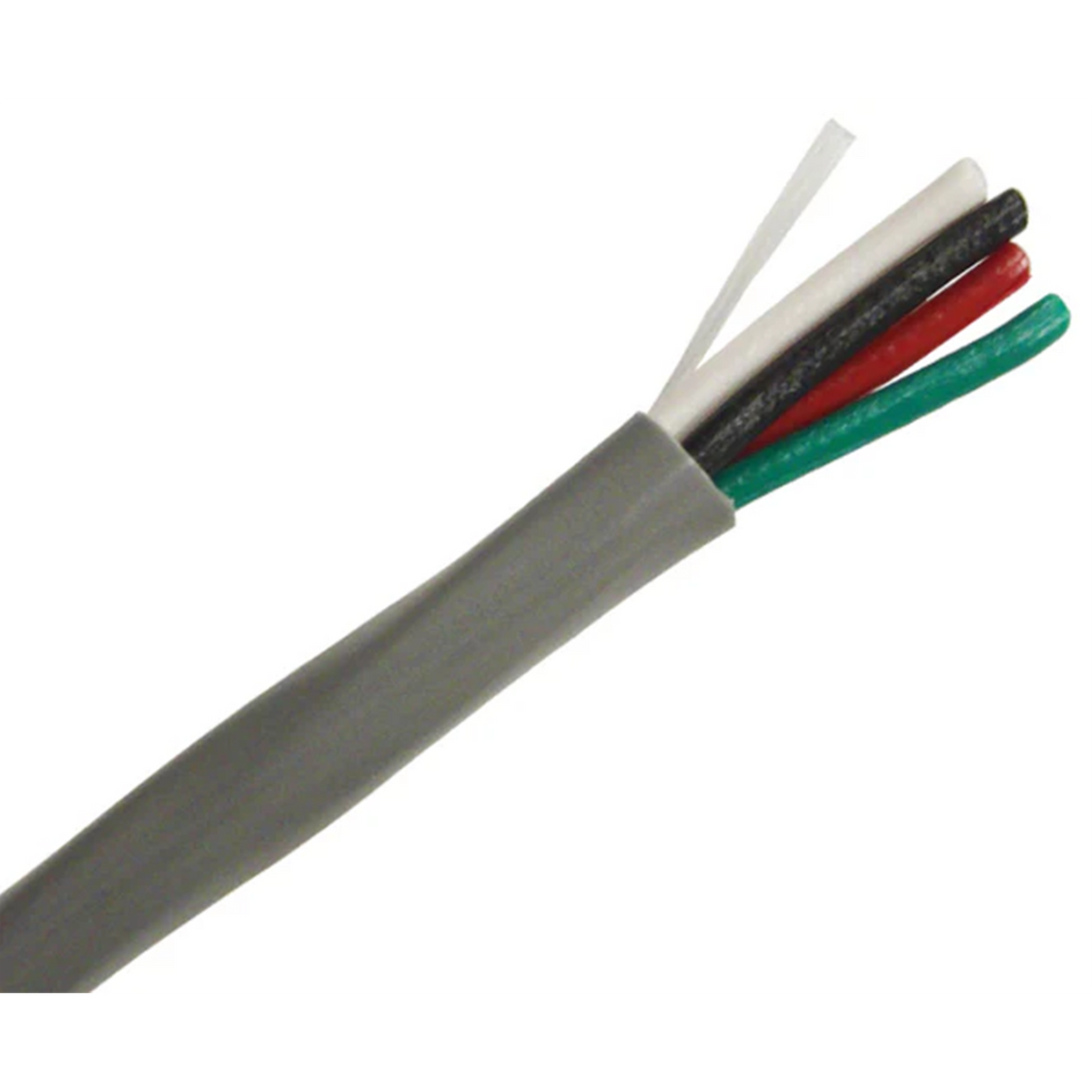

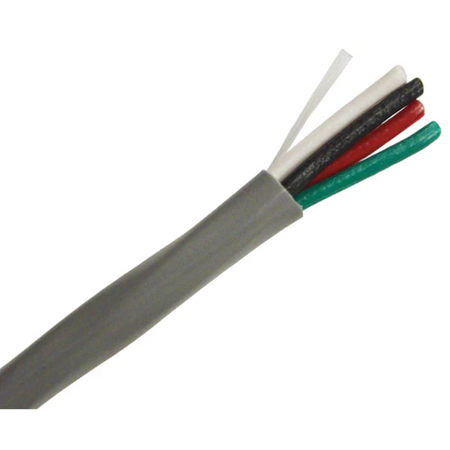

16/4 Riser Security Alarm Cable - 19 Strand Copper, CL3R Rated, 1000ft Gray
Couldn't load pickup availability
Professional-grade bulk security alarm cable designed for demanding residential and commercial installations. This USA-made riser alarm cable features four 16-gauge bare copper conductors with 19 strands each, delivering reliable performance for security systems, intercoms, power-limited controls, and audio applications.
Key Features
- 16 AWG 4-Conductor Configuration - Heavy-duty wire gauge for robust signal transmission
- 19-Strand Bare Copper Conductors - Maximum flexibility and conductivity
- CL3R/FPLR Riser Rated - Approved for vertical shaft installations
- Color-Coded Conductors - Black, Red, White, Green for easy identification
- Sequential Footage Marking - Accurate measurement for installation planning
- ETL Listed & RoHS Compliant - Meets stringent safety and environmental standards
- Made in USA - Premium quality domestic manufacturing
Ideal Applications
Perfect for residential and commercial installations:
- Security & Alarm Systems
- Intercom Systems
- Sound & Audio Distribution
- Power-Limited Control Circuits
Physical Construction
- Conductor Material: Stranded Bare Copper
- Wire Gauge: 16 AWG
- Strands per Conductor: 19
- Conductor Insulation: 1.2mm PVC
- Overall Insulation: PVC
- Cable Diameter (Nominal OD): 5.49mm
- Jacket Thickness: 0.38mm
- Jacket Material: Low-Smoke PVC
- Jacket Color: Gray
- Shielding: Unshielded
Electrical Performance
- Maximum Temperature: 75°C
- Voltage Rating: 300V
Certifications & Compliance
- Ratings: CL3R, FPLR, CMR
- Listings: ETL Listed
- Environmental: RoHS Compliant
Conductor Identification
- Conductor 1: Black
- Conductor 2: Red
- Conductor 3: White
- Conductor 4: Green
Why Choose This Cable?
Premium Copper Construction - 19-strand design ensures superior flexibility without sacrificing conductivity
Code Compliant - CL3R riser rating meets NEC requirements for in-wall and vertical installations
Easy Installation - Sequential footage marking and color-coded conductors save time on the job
Versatile Performance - Suitable for multiple low-voltage applications
USA Quality - Manufactured domestically to rigorous quality standards
