CAT6 No Boot Ethernet Patch Cable - Unshielded
Couldn't load pickup availability

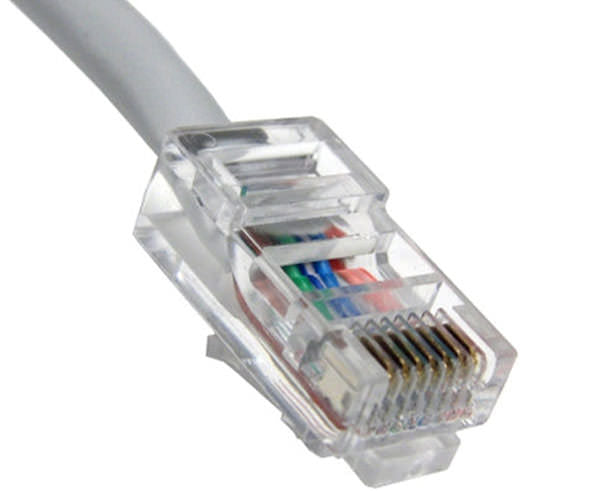

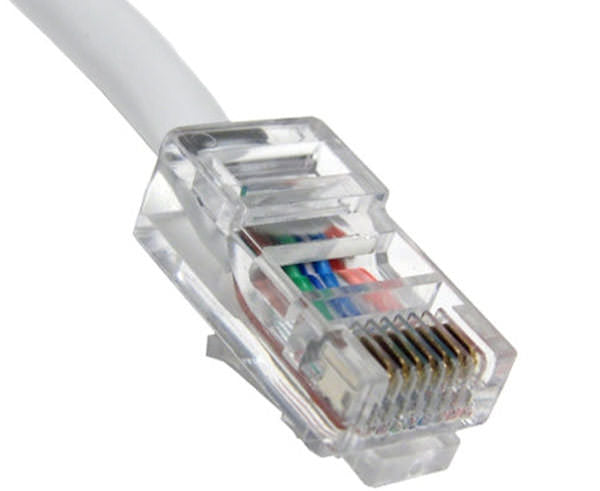

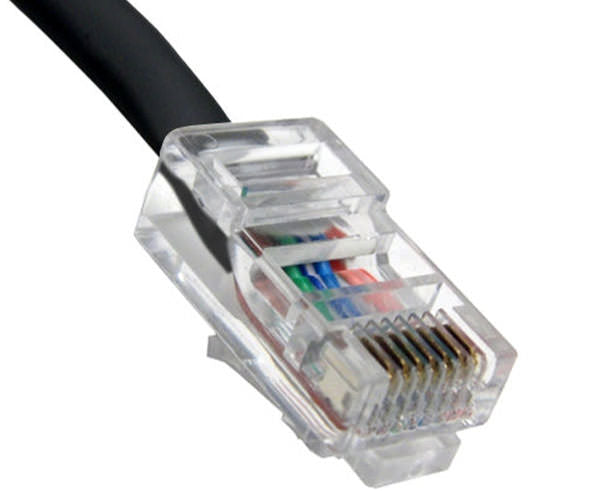

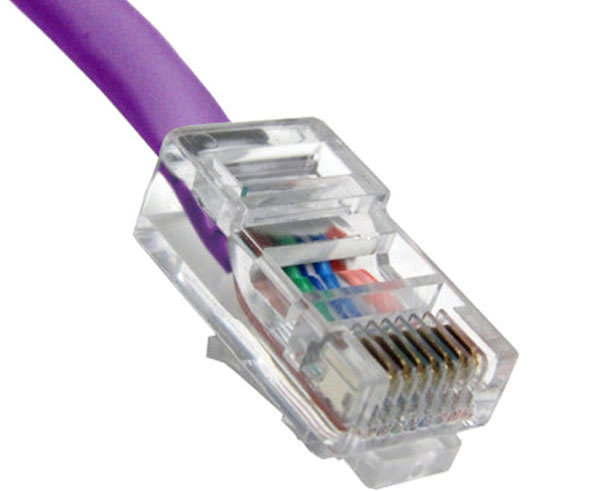

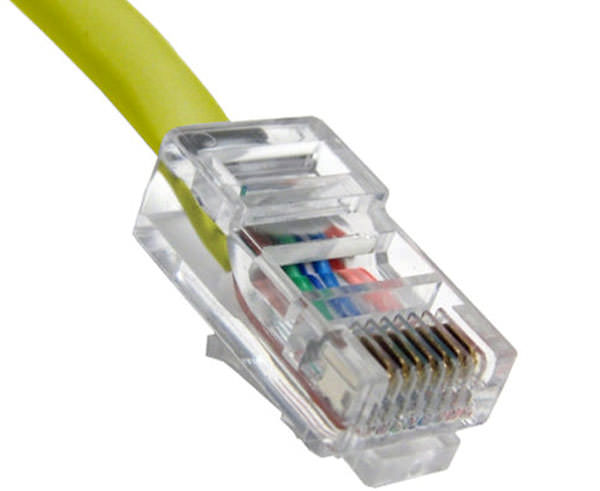

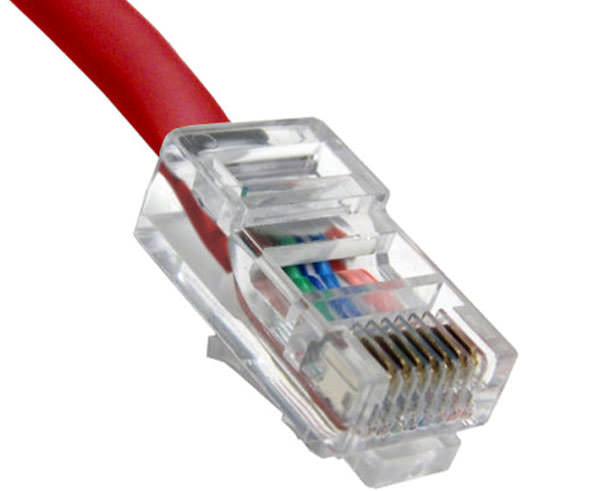

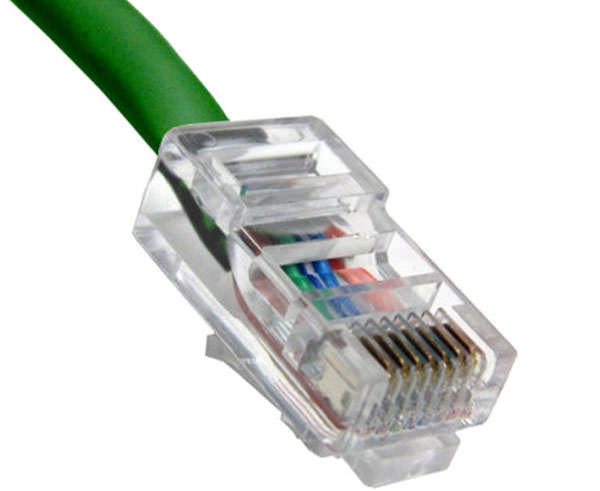

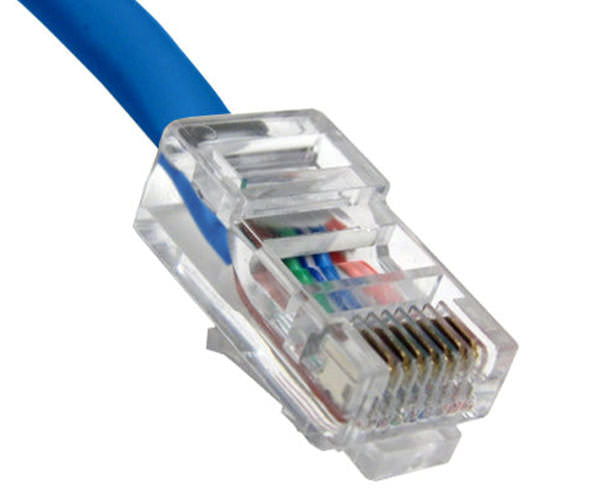

CAT6 UTP Ethernet Patch Cable - Non-Booted RJ45
Streamline your network setup with this compact, non-booted Cat6 patch cable designed for tight spaces, high-density installations, and fast, reliable connections. The slim, bootless RJ-45 design allows for maximum port density and easier insertion in crowded patch panels and network switches. Delivering full 10 Gigabit Ethernet performance for short runs, this cable is perfect for professional rack installations and quick patching needs.
Available in multiple short lengths ideal for high-density environments where space is at a premium and maximum port utilization is critical.
Key Features
- Non-booted RJ-45 connectors allow closer port spacing and quick, snag-free plugging/unplugging
- Slim profile design perfect for high-density patch panels and crowded rack installations
- 10 GbE performance certified Cat6 UTP supports 10GBase-T for short runs and Gigabit for longer distances
- Low crosstalk design 24 AWG stranded bare copper conductors ensure flexibility and clear signals
- Durable PVC jacket slim 5.4 mm diameter, indoor-rated, and RoHS compliant
- Gold-plated contacts provide corrosion resistance for consistent, reliable connections
- 550 MHz bandwidth supports demanding applications and multi-Gig speeds
- Flexible construction makes routing and cable management easier in tight spaces
- T568B wiring standard ensures broad compatibility with networking equipment
- Space-saving design ideal for maximizing port utilization
Ideal Applications
- High-density patch panel installations
- Network switch connections in crowded racks
- Server rack installations requiring tight port spacing
- Desktop and workstation patch panel jumpers
- VoIP phones and PoE device connections
- Media converters and network adapters
- Lab and testing environments
- Short-run 10 Gigabit Ethernet connections
- Data center applications with high port density
- Situations requiring maximum ports in minimum space
- Quick patching and testing scenarios
Technical Specifications
Cable Type & Performance
- Category: Cat6 (Category 6)
- Construction: Unshielded Twisted Pair (UTP)
- Data Rate: Supports 10GBase-T (10 Gbps for short runs), 5GBase-T (5 Gbps), 1000Base-T (1 Gbps)
- Speed Support: 10/100/1000 Mbps Ethernet, 2.5GBase-T, 5GBase-T, 10GBase-T (short runs)
- Bandwidth: Up to 550 MHz
- Wiring Standard: T568B
- Crosstalk Performance: Low crosstalk design for clear signal transmission
Physical Construction
- Conductor Material: Bare copper, stranded
- Conductor Gauge: 24 AWG
- Outer Jacket Material: PVC (Indoor rated)
- Outer Diameter: 5.4 ± 0.2 mm
- Connector Style: Non-booted (bootless) for slim profile
Connectors
- Connector Type: RJ-45 (8P8C) male on both ends
- Contact Plating: Gold-plated for corrosion resistance
- Boot Style: Non-booted for tight spacing and maximum port density
Available Options
- Multiple short lengths available for high-density installations
- Color options available for cable organization
Compliance & Rating
- Indoor rated (PVC jacket)
- RoHS compliant
Installation Notes
This non-booted Cat6 patch cable is specifically designed for high-density installations where space is limited and maximum port utilization is critical. The absence of the molded strain-relief boot creates a slimmer profile at the connector, allowing cables to be placed side-by-side in adjacent ports without interference.
10 Gigabit Ethernet Performance: This Cat6 cable supports 10GBase-T (10 Gbps) for short-run connections, making it ideal for high-density rack installations where equipment is closely spaced. For longer runs up to 100 meters, it reliably supports Gigabit Ethernet and all lower speeds.
When to Choose Non-Booted vs. Booted:
- Non-Booted (this cable): Best for permanent installations in patch panels, high-density racks, or situations where cables will rarely be moved. The slim profile maximizes port density and allows adjacent port connections.
- Booted: Better for cables that will be frequently plugged/unplugged, as the boot provides strain relief and protects the locking tab from damage.
The stranded bare copper construction provides excellent flexibility for routing in tight spaces and around corners. The 24 AWG gauge balances performance with flexibility, making these cables ideal for professional installations where both signal quality and cable management are important.
In high-density environments, using non-booted cables can significantly increase the number of connections possible in the same physical space, making them a preferred choice for data centers, server rooms, and network closets with limited rack space.
Color-coded options help maintain organization even in dense installations, allowing you to visually distinguish different network segments, VLANs, or connection types at a glance.
