12-Port CAT5E Patch Panel – 1U Rackmount (Unshielded)
Regular price
$26.99
Couldn't load pickup availability

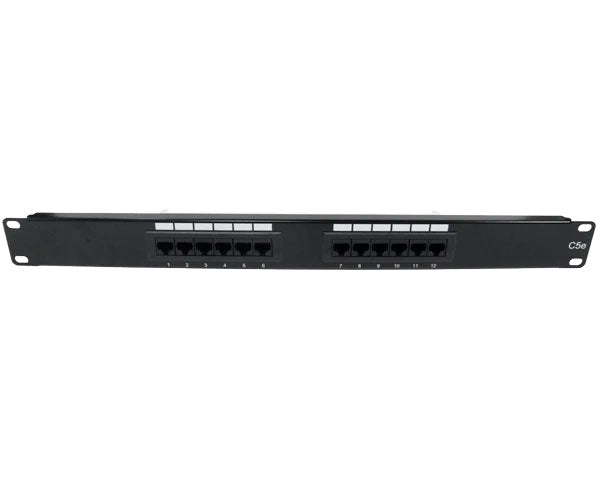

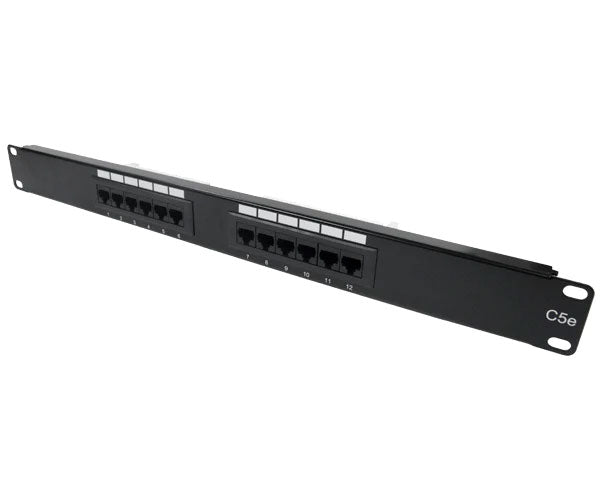

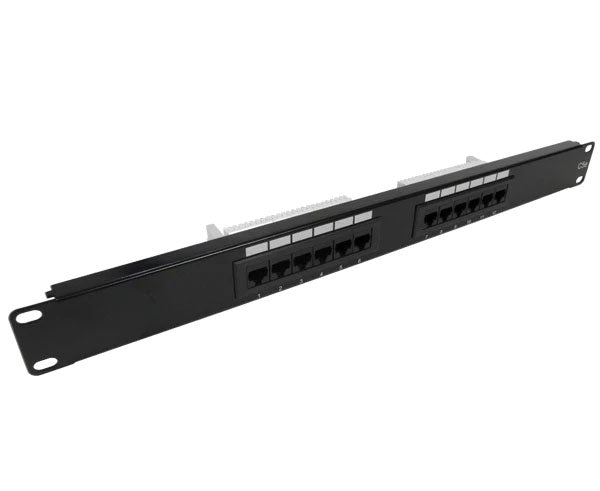

12-Port CAT5E Patch Panel – 1U Rackmount
Our preloaded CAT5E patch panel is the ideal solution for small home or office network installations. Featuring a compact 12-port configuration with flush-mounted RJ45 ports and color-coded 110/Krone termination blocks for easy setup, this professional-grade panel supports PoE++ (802.3bt) 4PPoE up to 100W, meeting and exceeding industry standards for safety and maximum network performance.
Key Features
- Premium CAT5E patch panel with compact 12-port configuration
- 12 flush-mounted RJ45 ports in space-saving 1U design
- PoE++ (802.3bt) 4PPoE support up to 100W
- Constructed from solid 16-gauge SPCC steel for durability

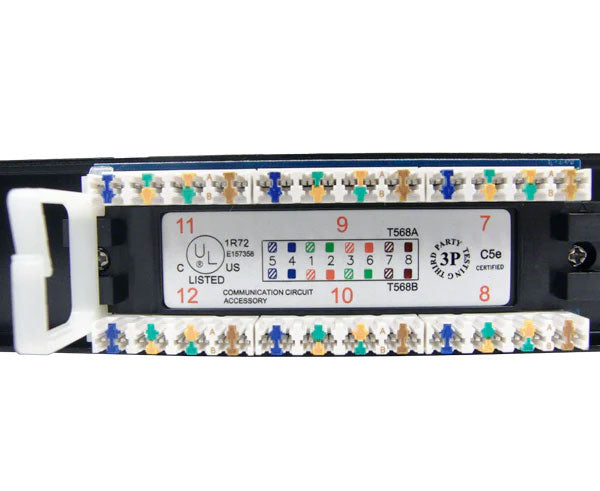

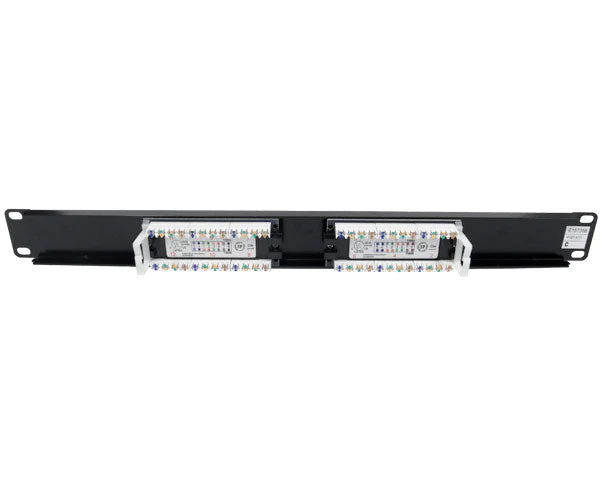

- Color-coded 110/Krone termination blocks for easy installation
- Standard 19" rack mountable
- Complete installation kit included: mounting screws, cable ties, and instructions
- TIA/EIA 568A and 568B compliant
- UL Listed and RoHS compliant
Technical Specifications
- Configuration: Unshielded, 12 RJ45 ports with color-coded termination
- Rack Size: 1U
- Port Count: 12 ports
- Dimensions: 19" W × 1.75" H × 2.25" D (482.6mm × 44.45mm × 57.5mm)
- Panel Material: SPCC steel, 1.6mm thick
- RJ45 Housing: PBT, UL 94V-0 rated
- RJ45 Contact: Phosphor bronze with 50-60 micro-inch nickel plating
- Contact Area: Minimum 3mm, 50 micro-inch gold plating
- IDC Housing: PC, UL 94V-2 rated
- IDC Terminal: Phosphor bronze with 50 micro-inch tin-lead plating over 50-60 micro-inch nickel plating
- Cable Holder: Nylon 66, UL 94V-0 rated
- Jacket Bracket: ABS UL 94V-0, black
- Cable Compatibility: CAT5E copper cable
- Power Support: PoE++ (802.3bt) up to 100W
- Certifications: UL Listed, RoHS Compliant, TIA/EIA 568A/B
