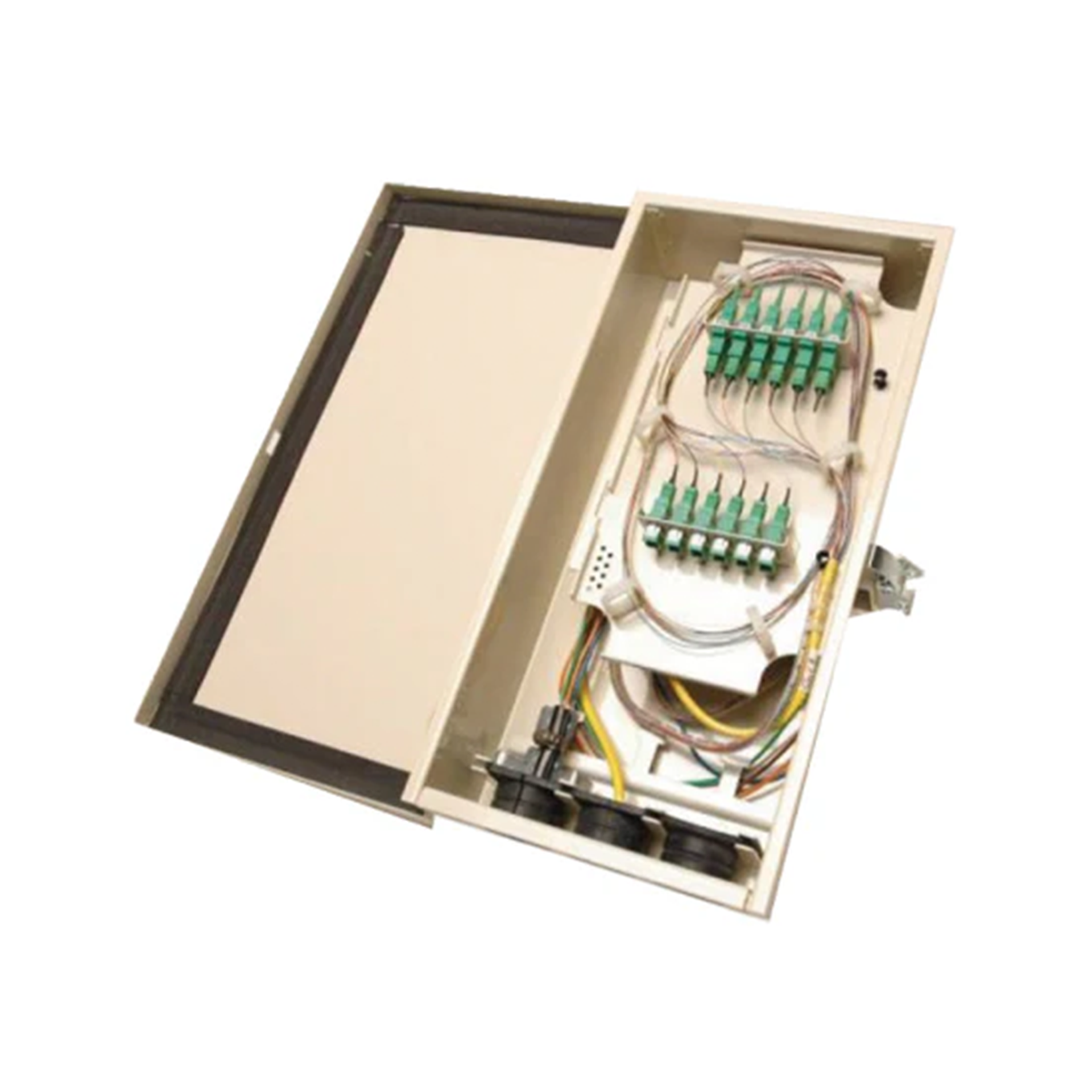

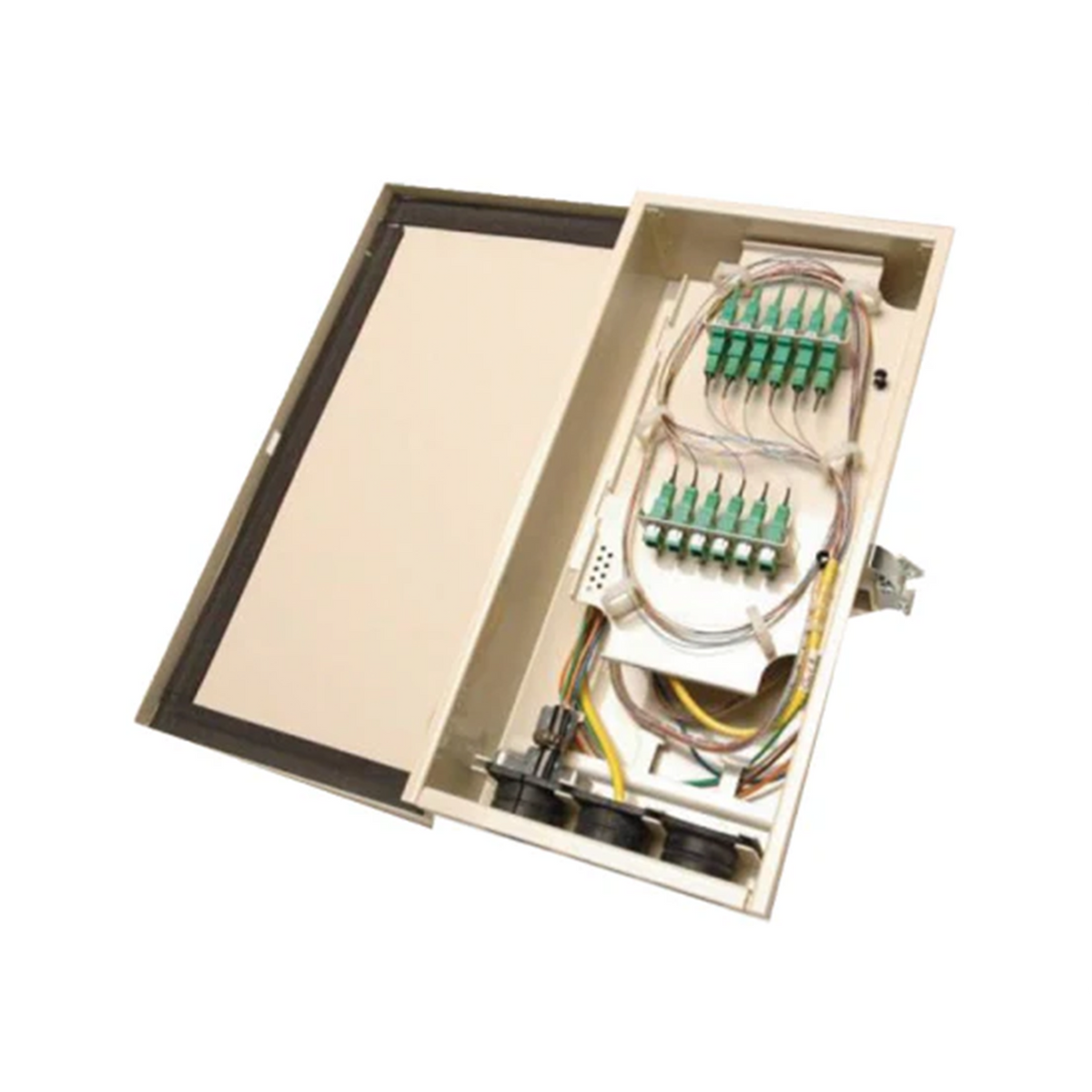

12-Port SC Fiber Patch Panel - Wall Mount NEMA 1
Professional-grade NEMA 1 rated wall-mounted fiber patch panel engineered for demanding environments requiring durability, security, and weather resistance. This heavy-duty enclosure features galvanneal construction with polyester powder-coat finish, combining 12-port SC adapter capacity with 36-splice capability in a single compact unit. The dual-function design with removable inner swing-out panel provides both patching and splicing capabilities, making it ideal for outdoor-protected locations, harsh industrial environments, and telecommunications facilities requiring robust fiber management.
Key Features
- NEMA 1 Rated - Weather-resistant enclosure for protected outdoor and industrial use
- 12-Port SC Capacity - Accommodates 12 SC simplex adapters (SC or SC/APC)
- 36 Splice Capacity - Storage for three 12-fiber splice trays
- Dual Functionality - Combined patching and splicing in single enclosure
- Removable Swing-Out Panel - Inner panel accepts adapters and splice trays
- Galvanneal Construction - Corrosion-resistant galvanized steel base material
- Polyester Powder Coat - Durable finish for harsh environments
- Lockable Outer Door - Secure access with removable lockable door
- 3 Cable Entry Points - Bottom-entry grommeted penetrations seal cables
- 16-Gauge Steel - Heavy-duty construction for long-term durability
- Professional Beige Finish - Clean appearance for any installation
Ideal Applications
Perfect for harsh environments and outdoor-protected installations:
- Outdoor Protected Locations - Under eaves, in weather-protected enclosures
- Industrial Facilities - Manufacturing and warehouse fiber distribution
- Telecommunications Sites - Cell towers, remote equipment shelters
- Utility Applications - Power substations, utility infrastructure
- Harsh Environments - Corrosive atmospheres, high humidity areas
- Secure Facilities - Government, military, critical infrastructure
- Transportation - Rail, transit, transportation hubs
- Building Entry Points - Exterior wall mounting with weather protection
Physical Specifications
- Outer Dimensions: 17.5" (H) x 9" (W) x 4" (D)
- Metric Dimensions: 445mm (H) x 229mm (W) x 102mm (D)
- Weight: 11 lbs (5.0 kg)
- Material: 16-Gauge Galvanneal (galvanized steel)
- Finish: Polyester powder-coat paint
- Color: Beige
- Mounting: Wall mount with mounting flanges
Capacity Specifications
- Adapter Capacity: 12 SC simplex ports
- Splice Capacity: Up to 36 fusion splices (3 trays x 12 splices)
- Splice Tray Storage: 3 trays (12-fiber capacity each)
- Configuration: Removable swing-out inner panel
- Compatible Adapters: SC simplex or SC/APC simplex
Environmental Rating
- NEMA Rating: NEMA 1 (General Purpose)
- Protection Level: Indoor and protected outdoor locations
- Weather Resistance: Resistant to dust, light splashing, contact with water
- Corrosion Resistance: Galvanneal + powder coat for harsh environments
- Sealed Entry: Grommeted cable entries prevent moisture ingress
Security Features
- Outer Door: Lockable single door (padlock not included)
- Door Type: Removable and lockable
- Inner Panel: Swing-out design for full access
- Construction: Heavy 16-gauge steel prevents forced entry
- Access Control: Key-controlled access to all connections
Cable Entry
- Entry Points: 3 non-captive cable entry points
- Location: Bottom of enclosure
- Sealing: Grommets included for cable sealing
- Configuration: Accepts multiple cable sizes
- Weather Protection: Sealed entries prevent moisture ingress
What's Included
- 1x NEMA 1 wall mount fiber enclosure (galvanneal, powder-coated)
- 1x Removable inner swing-out panel
- 3x Cable entry grommets
- Mounting hardware
