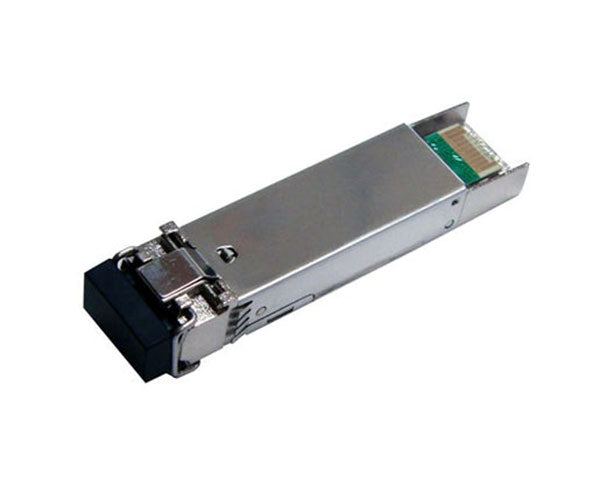

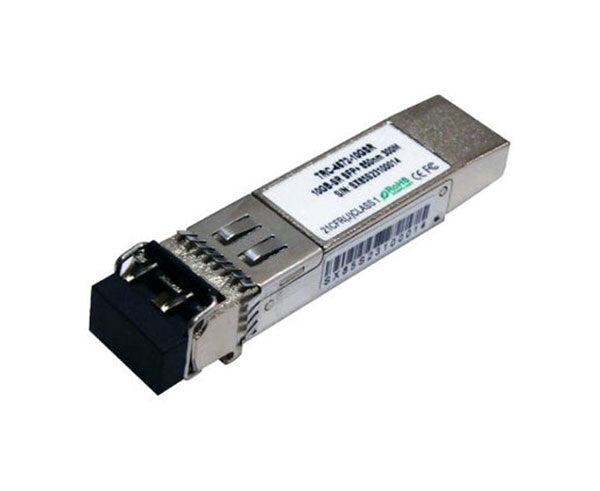

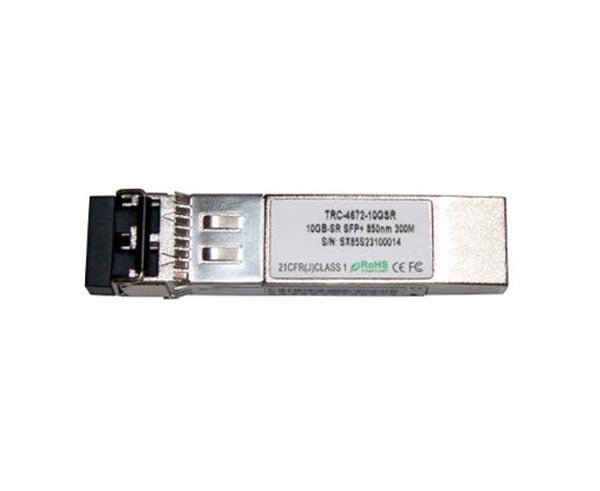

SFP+ 10G SR Transceiver - Multimode 300m - LC - Cisco Compatible
Couldn't load pickup availability
SFP+ 10G SR Transceiver - Multimode 300m - LC
Expand your 10 Gigabit Ethernet network capabilities with this high-performance SFP+ transceiver module designed for versatile multimode fiber connectivity. Perfect for data centers, enterprise wiring closets, and service provider transport applications, this 10GBASE-SR module delivers reliable 10G performance over multimode fiber with support for various fiber grades—from legacy FDDI to modern OM3/OM4 installations.
Built with 850nm VCSEL laser technology and LC duplex connectivity, this SFP+ module provides flexible distance options based on your fiber infrastructure: up to 300m on OM3 fiber and 400m on OM4 fiber. Fully compatible with Cisco equipment and hot-swappable for easy deployment, this transceiver offers enterprise-grade performance for high-speed server connections, storage networks, and backbone infrastructure.
Key Specifications
- Model: SFP-010
- Form Factor: SFP+ (Enhanced Small Form-Factor Pluggable)
- Data Rate: 10GBASE-SR (10 Gigabit Ethernet)
- Fiber Mode: Multimode Fiber (MMF)
- Wavelength: 850nm VCSEL

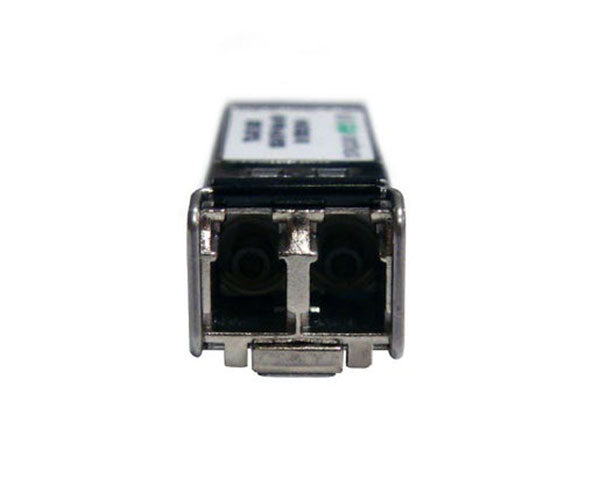

- Connector Type: LC Duplex
- Power Consumption: Low power design
- Operating Temperature: 0°C to 70°C (commercial grade)
- Hot-Swappable: Yes - install/remove without powering down
- Digital Diagnostics: DDM/DOM support for monitoring
- Compatibility: Cisco Compatible (also works with other major brands)
- Compliance: IEEE 802.3ae, MSA SFP+ compliant, RoHS
Distance Capabilities by Fiber Type
- OM1 (62.5µm @ 200MHz·km): Up to 33m (108 ft)
- OM2 (50µm @ 500MHz·km): Up to 82m (269 ft)
- OM3 (50µm @ 2000MHz·km): Up to 300m (984 ft)
- OM4 (50µm @ 4700MHz·km): Up to 400m (1,312 ft)
- Legacy FDDI (62.5µm @ 160MHz·km): Up to 26m (85 ft)
Key Features
- 10GBASE-SR Standard: IEEE 802.3ae compliant for reliable 10G connectivity
- 850nm VCSEL Technology: Low power consumption with excellent performance
- Multimode Fiber Support: Works with OM1, OM2, OM3, OM4, and legacy FDDI fiber
- Hot-Swappable Design: Install or remove without powering down equipment
- LC Duplex Connector: Industry-standard interface for easy connectivity
- Digital Diagnostics Monitoring (DDM/DOM): Real-time monitoring of optical power, temperature, voltage
- Wide Compatibility: Cisco compatible, also works with major networking equipment brands
- Low Power Consumption: Energy-efficient design for modern data centers
- Cost-Effective: Affordable alternative to OEM transceivers without sacrificing performance
Applications
- Data center server connectivity
- Storage area networks (SANs)
- Enterprise wiring closets and distribution
- Top-of-rack (ToR) switch connections
- Aggregation layer networking
- Service provider transport applications
- High-speed backbone connections
- Server-to-server clustering
- Virtualization infrastructure
- Cloud computing environments
- High-performance computing (HPC)
Compatibility
- Cisco: Catalyst switches, Nexus series, UCS servers, ASR routers
- Other Brands: Compatible with HP, Dell, Juniper, Arista, Brocade, and other major networking equipment (when used with appropriate coding)
- Fiber Types: OM1, OM2, OM3, OM4 multimode fiber
- Standards: IEEE 802.3ae 10GBASE-SR, SFP+ MSA compliant
