Cisco SFP-10G-LR Compatible SFP+ Module - 10GBASE-LR 10km Single Mode 1310nm LC Transceiver
Couldn't load pickup availability

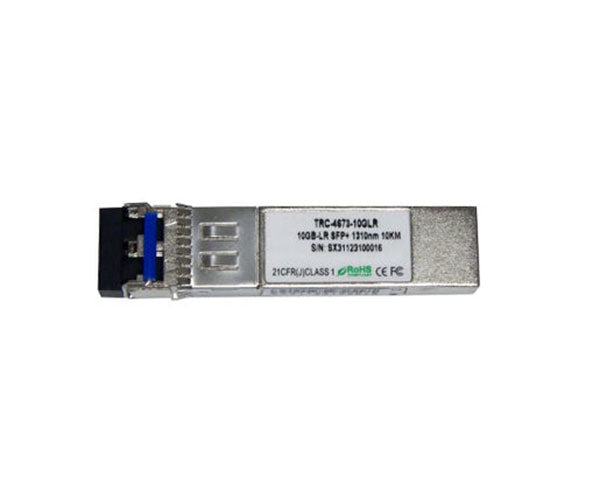

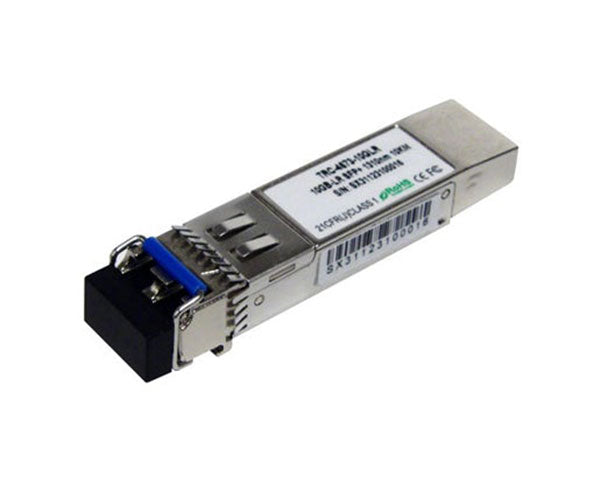

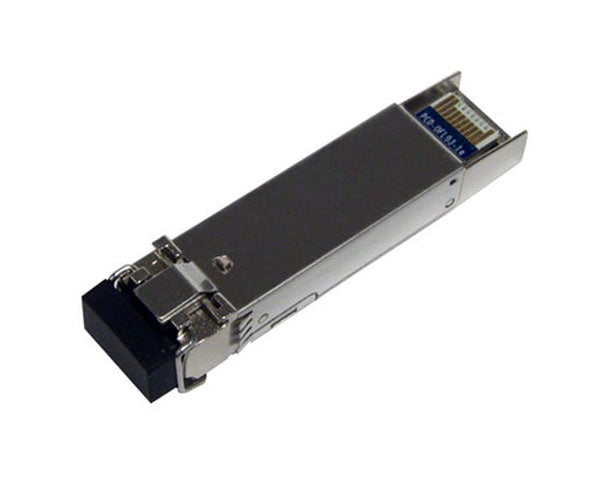

This high-performance 10GBASE-LR SFP+ transceiver is engineered for enterprise and data center applications, delivering reliable 10 Gigabit connectivity up to 10 kilometers over standard single-mode fiber (G.652). Operating at 1310nm, this module provides exceptional signal quality and low latency for mission-critical network infrastructure.
The module features full DDM (Digital Diagnostics Monitoring) support with SFF-8472 compliance, enabling real-time monitoring of critical parameters including optical power, temperature, voltage, and transmit/receive power levels through most network management systems. This allows for proactive diagnostics and simplified troubleshooting across your 10G network.
Fully compatible with Cisco switches and routers, as well as MSA (uncoded) standards, this transceiver serves as a direct replacement for Cisco's SFP-10G-LR module, offering exceptional value without compromising performance or reliability. The module is fully compliant with SFF-8431 and SFF-8432 specifications, ensuring broad interoperability with industry-standard equipment.
Key Specifications
- Form Factor: SFP+ (Enhanced Small Form-Factor Pluggable)
- Data Rate: 10 Gbps (10GBASE-LR)
- Cable Type: Single-mode fiber (SMF, G.652)

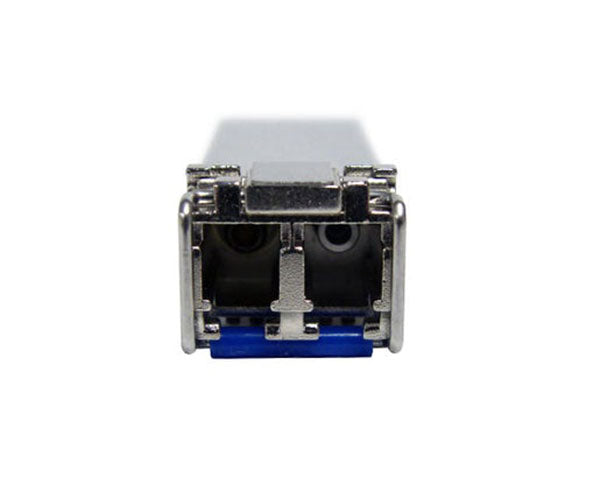

- Connector Type: LC duplex
- Wavelength: 1310nm
- Transmission Distance: Up to 10km
- Fiber Type Support: OS1/OS2 single-mode fiber
- DDM Support: Yes (Digital Diagnostics Monitoring)
- Compliance Standards: SFF-8472, SFF-8431, SFF-8432
- Compatibility: Cisco SFP-10G-LR, MSA compliant
- Hot-Pluggable: Yes
- Operating Temperature: 0°C to 70°C (commercial grade)
- Power Consumption: ≤1.0W (typical)
- Link Budget: Supports up to 10km fiber spans
