96 Port CAT5E Unshielded Patch Panel, 19-Inch Rackmount - 4U
Couldn't load pickup availability

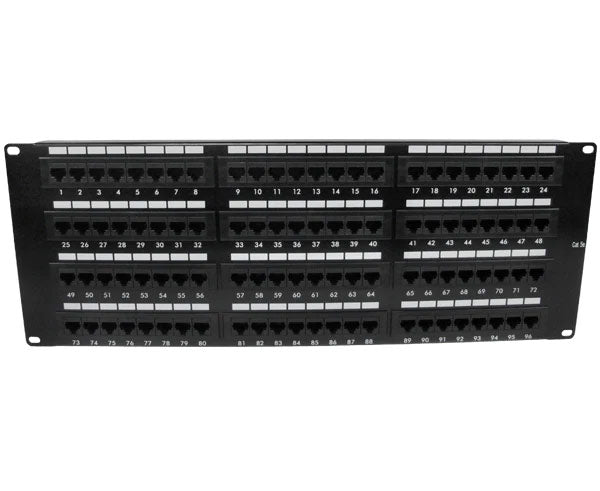

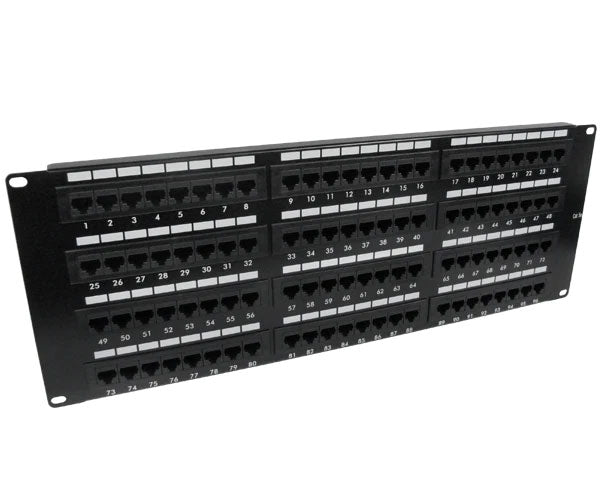

CAT5E 96-Port Network Patch Panel - 4U Rack Mount
This 96-Port CAT5E patch panel is ideal for installations for wiring closets and network distribution applications. This CAT5E patch panel has 96 flush-mounted RJ45 ports with color-coded labels for T568A and T568B wiring standards.
Our CAT5E patch panel meets UL standards and is UL Listed. Additionally, this patch panel is RoHS compliant and meets TIA/EIA 568A & 568B standards. The flush-mounted RJ45 ports help eliminate cable snags and create a professional-looking installation.
Usually ships in 1 - 2 days.

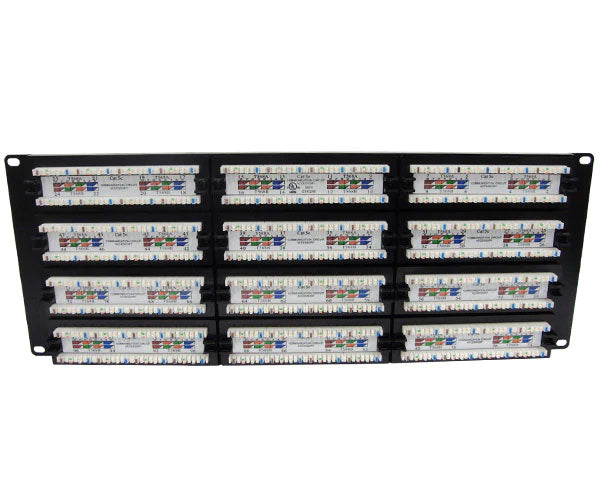

This CAT5E Patch Panel is constructed with 16 gauge steel. The RJ45 connectors include gold-plated phosphor bronze contacts allowing many connection/disconnection cycles. The 110-IDC termination contacts are also phosphor bronze with 50 micro-inch tin-lead plated over nickel-plated contacts for excellent performance.
- 96 Flush Mounted RJ45 Ports
- CAT5E Rated
- 19" Rack Mountable
- Includes 10-32 Screws, Cable Ties & Instructions
- Color-coded 110/Krone termination blocks
- T568A & T568B Compliant
|Port Count||96 Ports|
|Height||4U (7.0 in)|
|Panel Material||16 Gauge SPCC Steel|
|RJ45 Housing||UL 94V-0|
